chamberlain 4490
![]() | 1985 - 1986
90 Série tracteur de culture | 1985 - 1986 | Série 90 | Tracteur pour cultures en rangs |
|---|---|---|---|---|
1985 - 1986 | ||||
Série 90 | ||||
Tracteur pour cultures en rangs | ||||
1985 - 1986 | |
|---|---|
Série 90 | |
Tracteur pour cultures en rangs |
Production | |
|---|---|
Fabricant | Chamberlain (une division de John Deere) |
Tracteur pour cultures en rangs | |
Construit à Welshpool, Australie | |
Total construit | 250 |
Moteur Chamberlain 4490 | |
|---|---|
John Deere 7.6L diesel 6-cylindres | |
Détails du moteur ... |

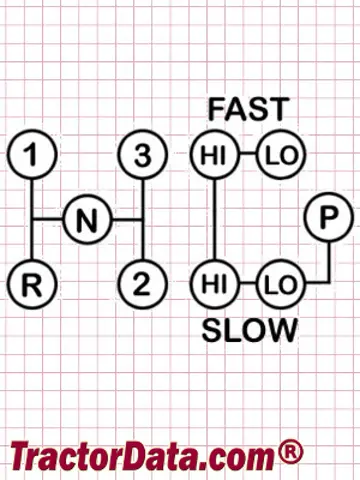

Transmission Chamberlain 4490 | |
|---|---|
12-speed powershift partiel | |
Détails de la transmission... |
Chamberlain 4490 Power | |
|---|---|
Moteur (net) | 137 ch
102,2 kW |
PTO (déclaré) | 129 ch
96,2 kW |
Mécanique | |
|---|---|
Conduire | 4x2 2WD |
| 4x4 MFWD 4WD (optionnel) |
Direction | puissance hydrostatique |
Freins à disque humide hydrauliques | |
Cabine standard avec climatisation. | |
Capacité | |
|---|---|
Carburant | 87,2 gal
330,1 L |
Système hydraulique | 7,2 gal
27,3 L |
Hydraulique | |
|---|---|
Type | centre ouvert |
Capacité | 7,2 gal
27,3 L |
Pression | 2500 psi
172,4 bar |
Vannes | 4 (max) |
| 3 (avec attelage 3 points) |
Débit total | 15,6 gpm
59,0 lpm |
Attelage de tracteur | |
|---|---|
Type arrière | III/IIIN |
Contrôle | détection de la barre supérieure |
Levage arrière (à 24"/610mm) | 6 517 lbs
2956 kg |
| 7 681 lbs (facultatif)
3484 kg |
Prise de Puissance (PTO) | |
|---|---|
Prise de puissance arrière | indépendant |
Embrayage | frein à disque hydraulique |
Type de prise de force arrière | 1000 |
Dimensions et Pneumatiques | |
|---|---|
2WD Empattement fixe | 113,5 pouces
288 cm |
Empattement 2WD | 114,3 pouces
290 cm |
Empattement 4x4 | 115 pouces
292 cm |
Poids | 13779 à 14319 livres |
Pneus avant | 11.00x16 |
Pneus arrière | 24,5x32 (2WD) |
Dimensions complètes et pneus ... | |
Électrique | |
|---|---|
Système de charge | alternateur |
Ampères de charge | 70 |
Batteries | 2 |
Volts de la batterie | 6 |
Références | |
|---|---|
![]() | |
Tracteurs John Deere dans le monde par Don Macmillan | |
Tracteurs de la série 90 publiés en 1985, par Chamberlain |
