cletrac ag 6
 | 1944 - 1957
Agricultural Crawler tractor | 1944 - 1957 | Agricultural Crawler tractor |
|---|---|---|---|
1944 - 1957 | |||
Agricultural Crawler tractor | |||
1944 - 1957 | |
|---|---|
Agricultural Crawler tractor |
Production | |
|---|---|
Manufacturer | Cletrac (a part of Oliver) |
Agricultural Crawler tractor | |
Cletrac AG-6 Engine | |
|---|---|
Continental 3.7L 6-cyl gasoline | |
Fuel tank | 18 gal
68.1 L |
Engine details ...  | |

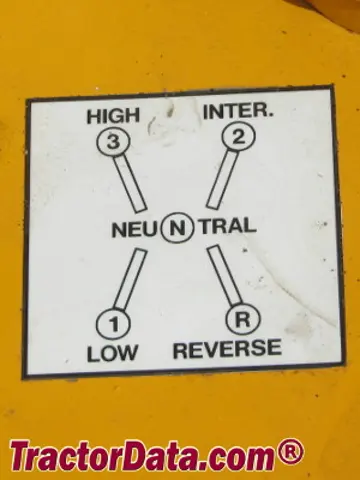

Cletrac AG-6 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Cletrac AG-6 Power | |
|---|---|
Drawbar (claimed) | 30.6 hp
22.8 kW |
Belt (claimed) | 38.8 hp
28.9 kW |
Plows | 3 (14-inch) |
Mechanical | |
|---|---|
Drive | crawler |
Steering | wet band brakes with differential |
Open operator station. | |
Photos | |
|---|---|
 | |
Cletrac AG-6 photos...  |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tracks | |
|---|---|
Wheelbase | 62 inches
157 cm |
Weight | 7086 lbs
3214 kg |
12-inch tracks | |
Full dimensions and tracks ...  | |
AG-6 Serial Numbers | |
|---|---|
1944 | 3X0000 |
1945 | 3X1512 |
1946 | 3X3260 |
1947 | 3X4586 |
1948 | 3X6062 |
1949 | 3X7644 |
1950 | 3X8452 |
1951 | 3X8456 |
FAQ: How to read a serial number table. | |
Belt Pulley | |
|---|---|
Diameter | 10.5 inches
26 cm |
Width | 8.5 inches
21 cm |
RPM | 1071 |
Speed | 2944 ft/min
897.33 meters/min |
Electrical | |
|---|---|
Charging system | Delco-Remy generator |
Battery volts | 6 |
 | |
|---|---|
