cockshutt 1750
 | 1964 - 1969
Row-Crop tractor | 1964 - 1969 | Row-Crop tractor |
|---|---|---|---|
1964 - 1969 | |||
Row-Crop tractor | |||
1964 - 1969 | |
|---|---|
Row-Crop tractor |
Series map: 16501750185073.3hp*88.9hp*102.2hp**Estimated engine power for comparison only.
Note: the Cockshutt model 1750 is the same as the Oliver 1750. The following data is from the 1750 listing. |
|---|
Transmission options | |
|---|---|
6-speed unsynchronized gear | |
12-speed partial power shift | |
18-speed partial power shift |
Transmission | |
|---|---|
Type | unsynchronized gear |
Gears | 6 forward and 2 reverse |
Speeds | |
|---|---|
With 18.4-34 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | Oliver Hydra-Power |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Clutch | dry disc |
Six gears (1-6) with two-range Hydra-Power power shift. Hydra-Power provdes a lower ratio and clutchless shifting between the Hydra-Power gear or direct drive. | |

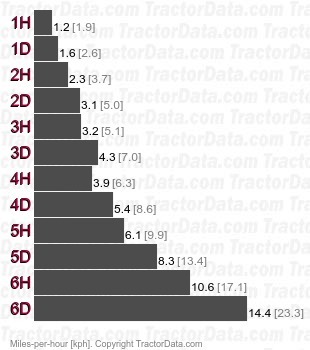

Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | Hydraul-Shift |
Type | partial power shift |
Gears | 18 forward and 6 reverse |
Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive. | |
