cockshutt 1800

overviewenginetransmissiondimensionstestsphotos
Cockshutt 1800 tractor photo
1963 - 1964 Row-Crop tractor
1963 - 1964
Row-Crop tractor
1963 - 1964
Row-Crop tractor
1963 - 1964
Row-Crop tractor

Series map: 16001800190066.7hp*85.6hp*99.3hp**Estimated engine power for comparison only.

Note: the Cockshutt model 1800 is the same as the Oliver 1800 Series B/C. The following data is from the 1800 Series B/C listing.
Tractor Tests
NTTL 831: diesel 12-speed 2WD
NTTL 832: diesel 12-speed 4WD
NTTL 839: gasoline 12-speed 2WD
NTTL 846: gasoline 12-speed 4WD
Nebraska Tractor Test 831

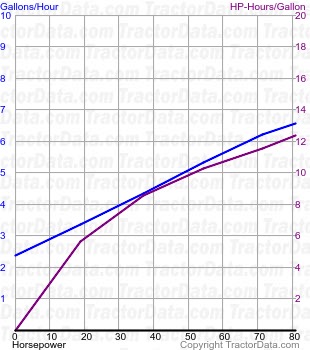

1800 fuel use from test 831
1800 fuel use from test 831
1800 fuel use from test 831
1800 fuel use from test 831
Nebraska Tractor Test 831
Diesel 12-speed 2WD November 6 - 15, 1962 Link: Nebraska Tractor Test 831 file
PTO performance
Power at rated engine speed
77.04 hp 57.4 kW
Fuel use
5.5 gal/hour 20.8 l/hour
Drawbar performance
Max power
64.53 hp 48.1 kW
Fuel use
5.5 gal/hour 20.8 l/hour
Gear 4H used for power test.
Max pull
10,783 lbs 4891 kg
Gear 2H used for pull test.
Nebraska Tractor Test 832
1800 fuel use from test 832
1800 fuel use from test 832
1800 fuel use from test 832
1800 fuel use from test 832
Nebraska Tractor Test 832
Diesel 12-speed 4WD November 16 - December 1, 1962 Link: Nebraska Tractor Test 832 file
PTO performance
Power at rated engine speed
76.97 hp 57.4 kW
Fuel use
5.5 gal/hour 20.8 l/hour
Drawbar performance
Max power
64.00 hp 47.7 kW
Fuel use
5.5 gal/hour 20.8 l/hour
Gear 4H used for power test.
Max pull
14,036 lbs 6366 kg
Gear 1D used for pull test.
Nebraska Tractor Test 839
1800 fuel use from test 839
1800 fuel use from test 839
1800 fuel use from test 839
1800 fuel use from test 839
Nebraska Tractor Test 839
Gasoline 12-speed 2WD May 22 - June 4, 1963 Link: Nebraska Tractor Test 839 file
PTO performance
Power at rated engine speed
80.16 hp 59.8 kW
Fuel use
6.6 gal/hour 25.0 l/hour
Drawbar performance
Max power
67.81 hp 50.6 kW
Fuel use
6.9 gal/hour 26.1 l/hour
Gear 4H used for power test.
Max pull
10,827 lbs 4911 kg
Gear 2H used for pull test.
Nebraska Tractor Test 846
1800 fuel use from test 846
1800 fuel use from test 846
1800 fuel use from test 846
1800 fuel use from test 846
Nebraska Tractor Test 846
Gasoline 12-speed 4WD September 10 - 19, 1963 Link: Nebraska Tractor Test 846 file
PTO performance
Power at rated engine speed
80.72 hp 60.2 kW
Fuel use
6.6 gal/hour 25.0 l/hour
Drawbar performance
Max power
68.40 hp 51.0 kW
Fuel use
6.5 gal/hour 24.6 l/hour
Gear 4H used for power test.
Max pull
14,155 lbs 6420 kg
Gear 1D used for pull test.
