cub cadet lawn tractors 2145
 | 1994 - 1995
2000 SeriesLawn tractor | 1994 - 1995 | 2000 Series | Lawn tractor |
|---|---|---|---|---|
1994 - 1995 | ||||
2000 Series | ||||
Lawn tractor | ||||
1994 - 1995 | |
|---|---|
2000 Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Variants | |
|---|---|
2140 | gear |
2165 | hydrostatic |
Cub Cadet 2145 Engine | |
|---|---|
14HP Onan 388cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Cub Cadet 2145 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |

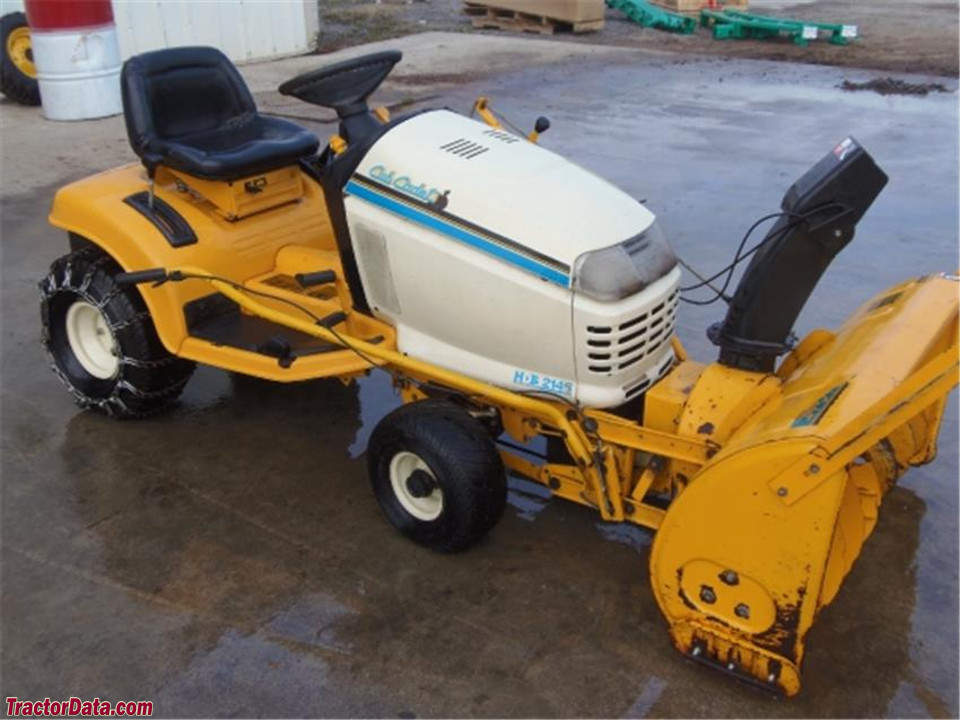

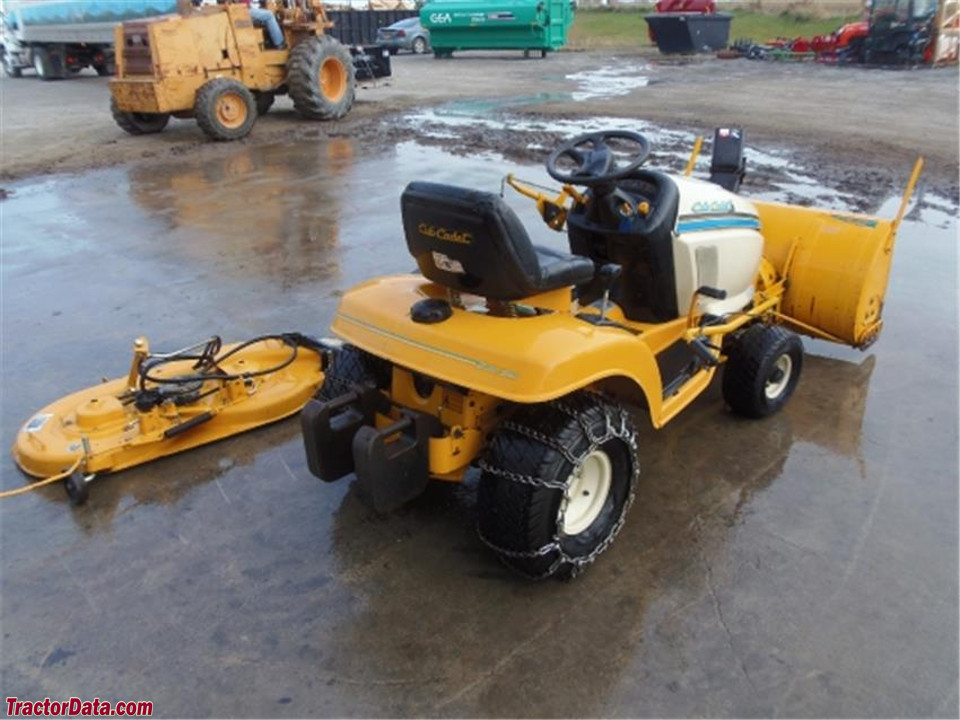

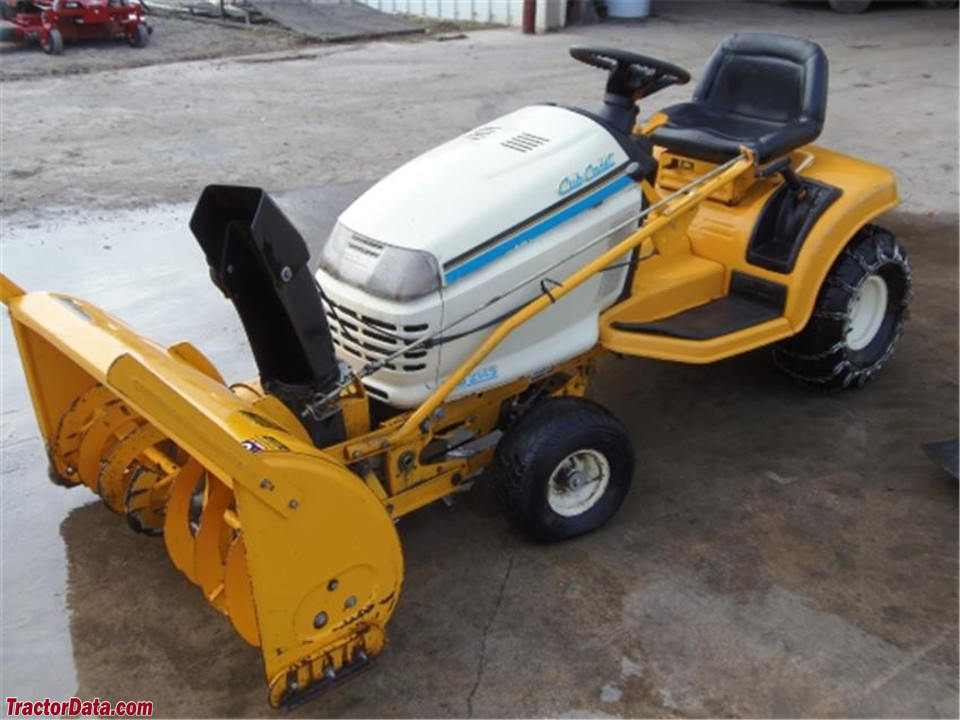

Photos | |
|---|---|
 | |
Cub Cadet 2145 photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Front PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Front tire | 15x6-6 |
Rear tire | 20x9-8 |
Full dimensions and tires ...  | |
Cub Cadet 2145 attachments | |
|---|---|
42" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
2145 Serial Number Location | |
|---|---|
 | |
Serial number plate on the left side of frame above front axle. |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Cub Cadet Garden Tractors (772-4232) | |
Full Line published in 1995, by Cub Cadet |
 | |
|---|---|
