deutz fahr dx 4 70
 | 1983 - 1989
DX4 SeriesUtility tractor | 1983 - 1989 | DX4 Series | Utility tractor |
|---|---|---|---|---|
1983 - 1989 | ||||
DX4 Series | ||||
Utility tractor | ||||
1983 - 1989 | |
|---|---|
DX4 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Utility tractor | |
Deutz-Fahr DX 4.70 Engine | |
|---|---|
Deutz 4.1L 4-cyl diesel | |
Fuel tank | 31.7 gal
120.0 L |
Engine details ...  | |
Deutz-Fahr DX 4.70 Transmissions | |
|---|---|
15-speed fully synchronized | |
20-speed creeper | |
Transmission details ...  |
Deutz-Fahr DX 4.70 Power | |
|---|---|
Engine | 90 hp
67.1 kW |
PTO (claimed) | 84 hp
62.6 kW |
Drawbar (tested) | 73.23 hp
54.6 kW |
PTO (tested) | 85.18 hp
63.5 kW |

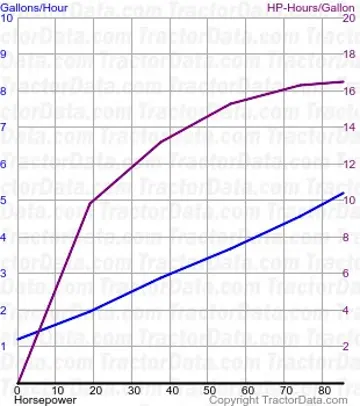

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
| OPTITRAC front |
Power steering | |
Hydraulic dry disc brakes | |
Mastercab standard with air-conditioning. | |
Photos | |
|---|---|
 | |
Deutz-Fahr DX 4.70 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2538 psi
175.0 bar |
Valves | 1 to 3 |
Pump flow | 19.6 gpm
74.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 8377 lbs
3799 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2025 |
| 1000@2110 |
Front PTO | independent |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 92 inches
233 cm |
4WD Wheelbase | 94.5 inches
240 cm |
Weight | 8466 to 9193 pounds |
Front tire | 10.00x16 |
2WD Rear tire | 18.4x34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
DX4.70-DX6.30-DX6.50-DX7.10 published in 1984, by Deutz-Fahr | |
DX4 published in 1984, by Deutz-Fahr |
