fiat 211r
 | 1959 - 1964
200 SeriesUtility tractor | 1959 - 1964 | 200 Series | Utility tractor |
|---|---|---|---|---|
1959 - 1964 | ||||
200 Series | ||||
Utility tractor | ||||
1959 - 1964 | |
|---|---|
200 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Fiat |
Utility tractor | |
Built in Modena, Italy | |
Variants | |
|---|---|
241 | 4WD |
Normal | utility chassis |
Frutal | low-profile |
Vinedo | narrow-profile |
Fiat 211R Engine | |
|---|---|
FIAT 1.1L 2-cyl diesel | |
Engine details ...  |

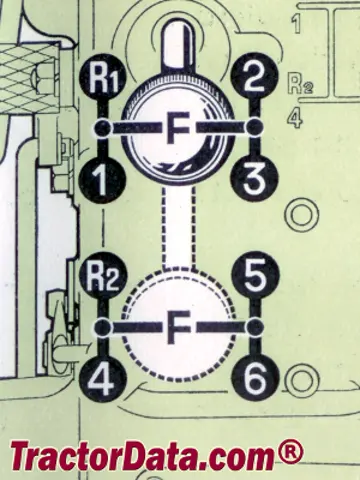

Fiat 211R Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Fiat 211R Power | |
|---|---|
Engine | 21.13 hp
15.8 kW |
Drawbar (claimed) | 18.43 hp
13.7 kW |
Belt (claimed) | 19.31 hp
14.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Fiat 211R photos...  |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Engine RPM | 540@2120 |
Dimensions & Tires | |
|---|---|
Wheelbase | 66.9 inches
169 cm |
Weight | 1984 lbs
899 kg |
Front tire | 4.00-15 |
Rear tire | 9-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1000 Super | |
211R published by Fiat | |
211r |
