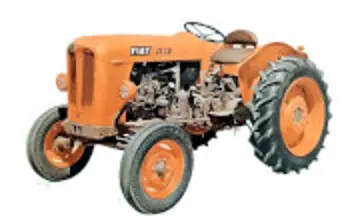

fiat 312r
 | 1959 - 1964
Utility tractor | 1959 - 1964 | Utility tractor |
|---|---|---|---|
1959 - 1964 | |||
Utility tractor | |||
1959 - 1964 | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | Fiat |
Utility tractor | |
Built in Modena, Italy | |
Variants | |
|---|---|
311C | crawler |

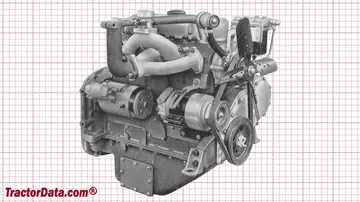

Fiat 312R Engine | |
|---|---|
Fiat 1.9L 4-cyl diesel | |
Fuel tank | 10.3 gal
39.0 L |
Engine details ...  | |

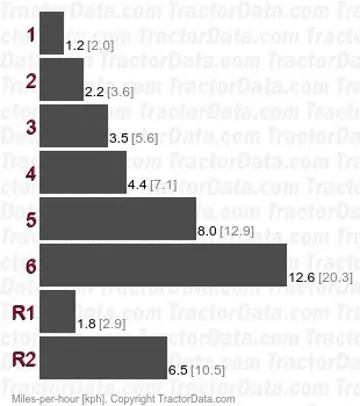

Fiat 312R Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Fiat 312R Power | |
|---|---|
Engine | 30 hp
22.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical band brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 1764 lbs
800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2160 |
Dimensions & Tires | |
|---|---|
Wheelbase | 69.9 inches
177 cm |
Weight | 3131 lbs
1420 kg |
Front tire | 5.50-16 |
Rear tire | 11.2/10-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Batteries | 2 |
Battery volts | 12 |
References | |
|---|---|
 | |
312R published in 1961, by Fiat |
