ford 640
 | 1954 - 1957
600 SeriesUtility tractor | 1954 - 1957 | 600 Series | Utility tractor |
|---|---|---|---|---|
1954 - 1957 | ||||
600 Series | ||||
Utility tractor | ||||
1954 - 1957 | |
|---|---|
600 Series | |
Utility tractor |
Engine options | |
|---|---|
Ford 2.2L 4-cyl gasoline | |
Ford 2.2L 4-cyl LP gas |
Engine Detail | |
|---|---|
Ford EAE Red Tiger | |
gasoline | |
4-cylinder 8-valve | |
liquid-cooled inline | |
Displacement | 134 ci
2.2 L |
Bore/Stroke | 3.44x3.60 inches
87 x 91 mm |
Emissions | Tier 0 |
Air cleaner | oil bath |
Compression | 6.6:1 |
Rated RPM | 2200 |
Firing order | 1-2-4-3 |
Starter volts | 6 |
Coolant capacity | 15 qts
14.2 L |
Sparkplug | 14MM |
Sparkplug gap | 0.025 inches (min)
0.635 mm |
| 0.028 inches (max)
0.711 mm |

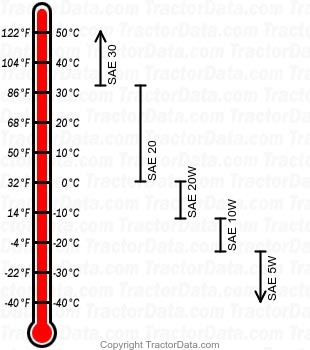

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
Engine Detail | |
|---|---|
Ford EAE Red Tiger | |
LP gas | |
4-cylinder 8-valve | |
liquid-cooled inline | |
Displacement | 134 ci
2.2 L |
Bore/Stroke | 3.44x3.60 inches
87 x 91 mm |
Air cleaner | oil bath |
Compression | 6.6:1 |
Rated RPM | 2200 |
Firing order | 1-2-4-3 |
Sparkplug | 14MM |
Sparkplug gap | 0.028 inches (min)
0.711 mm |
| 0.031 inches (max)
0.787 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
