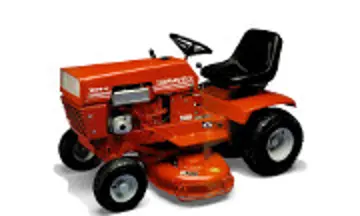

gravely lawn tractors 1238 g
 | 1988 - 1991
1200 SeriesLawn tractor | 1988 - 1991 | 1200 Series | Lawn tractor |
|---|---|---|---|---|
1988 - 1991 | ||||
1200 Series | ||||
Lawn tractor | ||||
1988 - 1991 | |
|---|---|
1200 Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Gravely (a part of Ariens) |
Lawn tractor | |
Gravely 1238-G Engine | |
|---|---|
12HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 1.75 gal
6.6 L |
Engine details ...  | |
Gravely 1238-G Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 468 lbs
212 kg |
Front tire | 13x5.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Gravely 1238-G attachments | |
|---|---|
38" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |
References | |
|---|---|
 | |
Riding Tractors published in 1990, by Gravely | |
Riding Tractors published in 1991, by Gravely |
