gravely lawn tractors 432
![]() | 1967 - 1972
Série 400Tracteur de jardin | 1967 - 1972 | 400 Série | Tracteur de jardin |
|---|---|---|---|---|
1967 - 1972 | ||||
400 Série | ||||
Tracteur de jardin | ||||
1967 - 1972 | |
|---|---|
400 Série | |
Tracteur de jardin |
Production | |
|---|---|
Fabricant | Gravely |
Tracteur de jardin | |
Moteur Gravely 432 | |
|---|---|
14HP Kohler 512cc 1-cyl essence | |
Réservoir de carburant | 5 gal
18,9 L |
Détails du moteur ... | |
Transmission Gravely 432 | |
|---|---|
boîte de vitesses 4 rapports | |
Détails de la transmission... |
Mécanique | |
|---|---|
Transmission intégrale | |
Direction | manuel |
Freins à bande mécaniques | |
Poste opérateur ouvert. | |
Photos | |
|---|---|
![]() | |

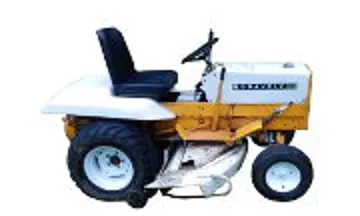

Gravely 432 photos... |
Attelage de tracteur | |
|---|---|
Type | attelage frontal Optionnel |
Dimensions et Pneumatiques | |
|---|---|
Empattement | 117 centimètres |
Poids | 900 lbs
408 kg |
Pneus avant | 16-6,50x6 |
Pneus arrière | 23-8.50x12 |
Dimensions complètes et pneus ... | |
Accessoires Gravely 432 | |
|---|---|
Plate de coupe centrale de 40" | |
Plate de coupe centrale de 50" | |
déneigeuse | |
lame | |
Détails de l'attelage... |
432 Numéros de série | |
|---|---|
Localisation: | Devant l'essieu arrière sur le côté gauche. |
Électrique | |
|---|---|
Sol | négatif |
Volts de la batterie | 12 |
Références | |
|---|---|
![]() | |
Manuel du propriétaire 424 - 430 - 432 (14535P1) publié en 1969 | |
Manuel d'atelier 424, 430, 432 et 450 (14535P1) publié en 1972 | |
Gravely '70 publié en 1970 | |
La Grande Durabilité Gravely publiée en 1972 |
