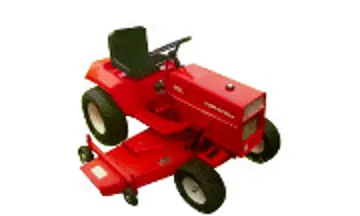

gravely lawn tractors 8129
 | 1980
8000 SeriesGarden tractor | 1980 | 8000 Series | Garden tractor |
|---|---|---|---|---|
1980 | ||||
8000 Series | ||||
Garden tractor | ||||
1980 | |
|---|---|
8000 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Gravely |
Garden tractor | |
Variants | |
|---|---|
8128 | mechanical lift |
8129 | hydraulic lift |

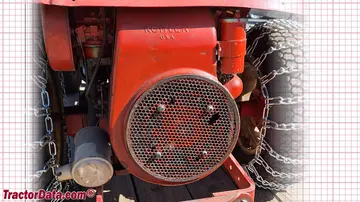

Gravely 8129 Engine | |
|---|---|
12HP Kohler 476cc 1-cyl gasoline | |
Fuel tank | 5.3 gal
20.1 L |
Engine details ...  | |
Gravely 8129 Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Gravely 8129 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 1200 psi
82.7 bar |
Pump flow | 1.7 gpm
6.4 lpm |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical |
Mid PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 52 inches
132 cm |
Weight | 890 lbs
403 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 42 |
References | |
|---|---|
 | |
Grounds Maintenance Tractors published in 1980, by Gravely |
