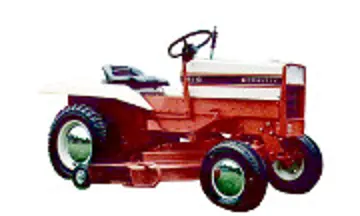

gravely lawn tractors 814
 | 1973 - 1978
Série 800Tracteur de jardin | 1973 - 1978 | 800 Série | Tracteur de jardin |
|---|---|---|---|---|
1973 - 1978 | ||||
800 Série | ||||
Tracteur de jardin | ||||
1973 - 1978 | |
|---|---|
800 Série | |
Tracteur de jardin |
Production | |
|---|---|
Fabricant | Gravely |
Tracteur de jardin | |
Moteur Gravely 814 | |
|---|---|
14HP Kohler 512cc 1-cyl essence | |
Réservoir de carburant | 5,3 gal
20,1 L |
Détails du moteur ...  | |

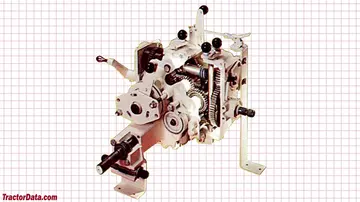

Transmission Gravely 814 | |
|---|---|
boîte 8 vitesses | |
Détails de la transmission...  |
Mécanique | |
|---|---|
Transmission intégrale | |
Direction manuelle | |
Poste opérateur ouvert. |
Dimensions et Pneumatiques | |
|---|---|
Poids | 900 lbs
408 kg |
Pneus avant | 16x6.50-8 |
Pneus arrière | 23x8.50-12 |
Dimensions complètes et pneus ...  | |
Accessoires Gravely 814 | |
|---|---|
Plate de coupe centrale de 40" | |
Plate de coupe centrale de 50" | |
Détails de l'attelage...  |
814 Numéros de série | |
|---|---|
Localisation: | Devant et sous le nettoyeur d'air. |
Électrique | |
|---|---|
Sol | négatif |
Volts de la batterie | 12 |
Batterie AH | 43 |
Groupe batterie | 22F |
Références | |
|---|---|
 | |
Manuel du propriétaire 810 - 812 - 814 - 816 (20041L3) publié en 1973 | |
Tracteurs de promenade publiés en 1973, par Gravely |
