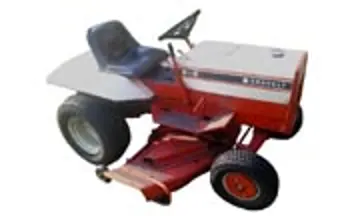

gravely lawn tractors 816
 | 1972 - 1978
800 SeriesGarden tractor | 1972 - 1978 | 800 Series | Garden tractor |
|---|---|---|---|---|
1972 - 1978 | ||||
800 Series | ||||
Garden tractor | ||||
1972 - 1978 | |
|---|---|
800 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Gravely |
Garden tractor | |
Gravely 816 Engines | |
|---|---|
16.5HP Onan 816cc 2-cyl gasoline | |
16HP Onan 716cc 2-cyl gasoline | |
Fuel tank | 5.3 gal
20.1 L |
Engine details ...  | |

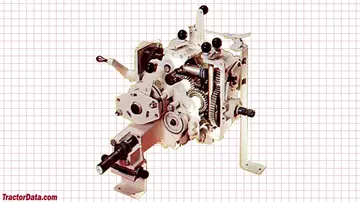

Gravely 816 Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Gravely 816 photos...  |
Dimensions & Tires | |
|---|---|
Weight | 960 lbs
435 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Gravely 816 attachments | |
|---|---|
40" mid-mount mower deck | |
50" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
816 Serial Numbers | |
|---|---|
Location: | In front of, and below, air cleaner. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 43 |
Battery Group | 22F |
References | |
|---|---|
 | |
Owner's Manual 810 - 812 - 814 - 816 (20041L3) published in 1973 | |
Owner's Manual 800 Series (22454) published in 1977 | |
The Great Gravely Durability published in 1972 | |
Riding Tractors published in 1973, by Gravely | |
Like Nobody Else published in 1976, by Gravely | |
Riding Tractors published in 1978, by Gravely |
