gravely lawn tractors 8199 g
 | 1986
8000-G SeriesGarden tractor | 1986 | 8000-G Series | Garden tractor |
|---|---|---|---|---|
1986 | ||||
8000-G Series | ||||
Garden tractor | ||||
1986 | |
|---|---|
8000-G Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Gravely (a part of Ariens) |
Garden tractor | |
Gravely 8199-G Engine | |
|---|---|
19HP Kohler 770cc 2-cyl gasoline | |
Engine details ...  |
Gravely 8199-G Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |

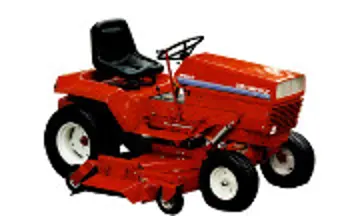

Gravely 8199-G photos...  |
Capacity | |
|---|---|
Fuel | 5.3 gal
20.1 L |
Hydraulic system | 0.25 gal
0.9 L |
Hydraulics | |||
|---|---|---|---|
Capacity | 0.25 gal
0.9 L | ||
Oil type | ATF Dextron II | ATF Dextron II | |
ATF Dextron II | |||
ATF Dextron II |
|---|
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 52.25 inches
132 cm |
Weight | 857 to 895 pounds |
Front tire | 16x7.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Gravely 8199-G attachments | |
|---|---|
40" mid-mount mower deck | |
50" mid-mount mower deck | |
60" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
8199-G Serial Numbers | |
|---|---|
Location: | Under hood on right side, on instrument panel support frame. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 42 |
Battery Group | BCI 22F |
References | |
|---|---|
 | |
Riding Tractors published in 1986, by Gravely |
