hesston 466
 | 1983 - 1984
Utility tractorFiat built | 1983 - 1984 | Utility tractor | Fiat built |
|---|---|---|---|---|
1983 - 1984 | ||||
Utility tractor | ||||
Fiat built | ||||
1983 - 1984 | |
|---|---|
Utility tractor | |
Fiat built |
Production | |
|---|---|
Distributor | Hesston |
Manufacturer | Fiat |
Utility tractor | |
Built in Modena, Italy | |
Original price was $16,400 in 1984 | |
Variants | |
|---|---|
466DT | 4WD |
Hesston 466 Engine | |
|---|---|
Fiat 2.6L 3-cyl diesel | |
Fuel tank | 19.2 gal
72.7 L |
Engine details ...  | |
Hesston 466 Transmissions | |
|---|---|
12-speed synchronized | |
12-speed | |
20-speed | |
Transmission details ...  |
Hesston 466 Power | |
|---|---|
Drawbar (claimed) | 40 hp
29.8 kW |
PTO (claimed) | 45 hp
33.6 kW |
Drawbar (tested) | 38.44 hp
28.7 kW |
PTO (tested) | 45.13 hp
33.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Differential mechanical wet disc brakes | |
Four-post ROPS standard. Optional canopy. |

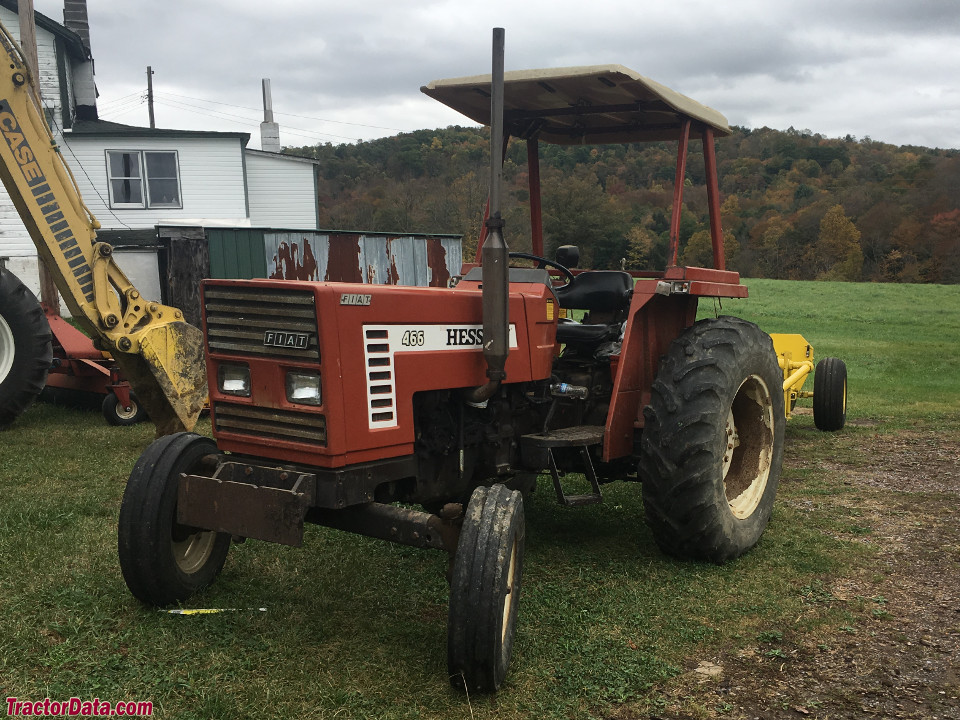

Photos | |
|---|---|
 | |
Hesston 466 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2700 psi
186.2 bar |
Valves | 0 to 2 |
Pump flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | I/II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 85.6 inches
217 cm |
4WD Wheelbase | 83.4 inches
211 cm |
Weight | 4851 to 5720 pounds |
Front tire | 6.00-16 |
Rear tire | 13.6-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 33 |
