hesston 680
 | 1981 - 1984
80 SeriesUtility tractor | 1981 - 1984 | 80 Series | Utility tractor |
|---|---|---|---|---|
1981 - 1984 | ||||
80 Series | ||||
Utility tractor | ||||
1981 - 1984 | |
|---|---|
80 Series | |
Utility tractor |
Transmission options | |
|---|---|
8-speed partially synchronized | |
16-speed | |
8-speed mechanical shuttle |
Transmission | |
|---|---|
Type | partially synchronized |
Gears | 8 forward and 2 reverse |
Four gears with high and low ranges provide eight forward speeds. Gears 3/4 are synchronized in both ranges. | |

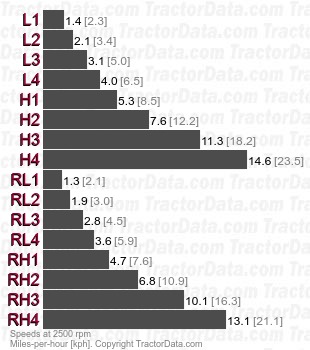

Speeds | |
|---|---|
With 16.9-30 rear tires. | |
 |
Transmission | |
|---|---|
Gears | 16 forward and 4 reverse |
Four gears with four ranges provides sixteen forward speeds. | |
Speeds | |
|---|---|
With 16.9-30 rear tires. | |
 |
Transmission | |
|---|---|
Type | mechanical shuttle |
Gears | 8 forward and reverse |
Speeds | |
|---|---|
With 16.9-30 rear tires. | |
 |
