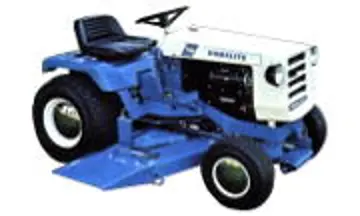

homelite lawn tractors t 16s
 | 1973
Garden tractorSimplicity built | 1973 | Garden tractor | Simplicity built |
|---|---|---|---|---|
1973 | ||||
Garden tractor | ||||
Simplicity built | ||||
1973 | |
|---|---|
Garden tractor | |
Simplicity built |
Production | |
|---|---|
Distributor | Homelite (a part of Textron) |
Manufacturer | Simplicity |
Garden tractor | |
Variants | |
|---|---|
T-16S | shuttle |
T-16H | hydrostatic |
Homelite T-16S Engine | |
|---|---|
16HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 2.5 gal
9.5 L |
Engine details ...  | |
Homelite T-16S Transmission | |
|---|---|
4-speed shuttle | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Drum brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Homelite T-16S photos...  |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.1 inches
122 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Homelite T-16S attachments | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 14 |
Battery volts | 12 |
 | |
|---|---|
