international harvester 1468
 | 1971 - 1974
66 SeriesRow-Crop tractor | 1971 - 1974 | 66 Series | Row-Crop tractor |
|---|---|---|---|---|
1971 - 1974 | ||||
66 Series | ||||
Row-Crop tractor | ||||
1971 - 1974 | |
|---|---|
66 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Row-Crop tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 2,905 |
Original price was $20,400 in 1974 | |
The 1468 was a 1466 with a International V8 truck engine. | |
International Harvester 1468 Engine | |
|---|---|
International 9.0L 8-cyl diesel | |
Fuel tank | 42 gal
159.0 L |
Engine details ...  | |

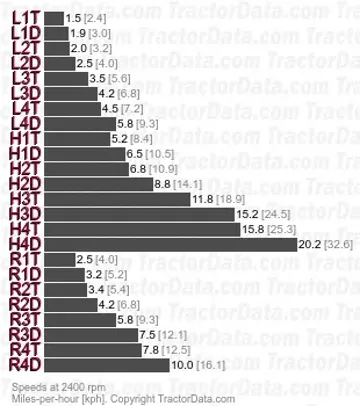

International Harvester 1468 Transmissions | |
|---|---|
8-speed gear | |
16-speed two-speed power shift | |
Transmission details ...  |
International Harvester 1468 Power | |
|---|---|
PTO (claimed) | 133 hp
99.2 kW |
Drawbar (tested) | 127.7 hp
95.2 kW |
PTO (tested) | 145.5 hp
108.5 kW |

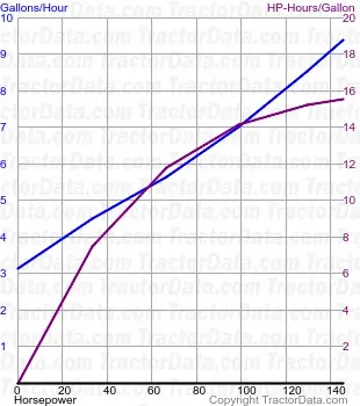

Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | bull gear |
Power steering | |
Hydraulic dry disc brakes | |
Cab standard with air-conditioning. | |

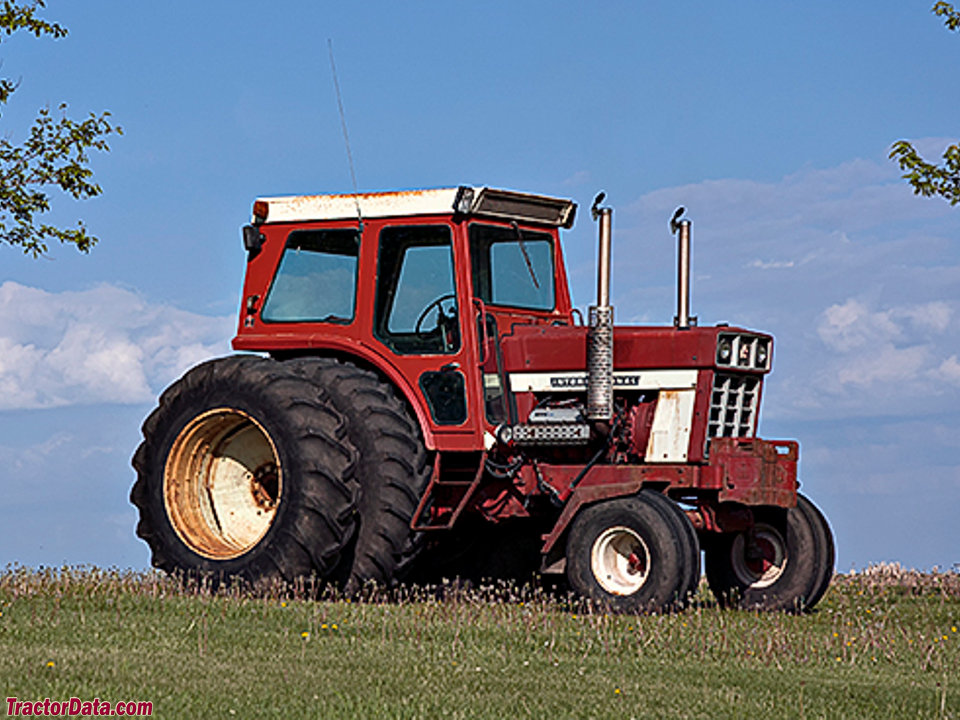

Photos | |
|---|---|
 | |
International Harvester 1468 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Rear valves | 1 |
Pump flow | 12 gpm
45.4 lpm |
Steering flow | 9 gpm
34.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Rear lift (at 24"/610mm) | 5600 lbs
2540 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 105 inches
266 cm |
Weight | 10700 to 11850 pounds |
Front tire | 11L-16 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
1468 Serial Numbers | |
|---|---|
1971 | 7201 |
1972 | 7239 |
1973 | 9109 |
1974 | 9670 |
FAQ: How to read a serial number table. | |
Links | |
|---|---|
IH V-8 Tractor Engines: article on the V8s from TractorShop.com |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 37 |
Batteries | 2 |
Battery volts | 6 |
References | |
|---|---|
 | |
Farm Equipment Reference Catalog published in 1971, by International Harvester |
