international harvester 184 lo boy
 | 1977 - 1980
Compact Utility tractor | 1977 - 1980 | Compact Utility tractor |
|---|---|---|---|
1977 - 1980 | |||
Compact Utility tractor | |||
1977 - 1980 | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Compact Utility tractor | |
Built in Louisville, Kentucky, USA | |
Original price | $4,200 (1980) |
International Harvester 184 Lo-Boy Engine | |
|---|---|
International Harvester 1.0L 4-cyl gasoline | |
Engine details ...  |
International Harvester 184 Lo-Boy Transmissions | |
|---|---|

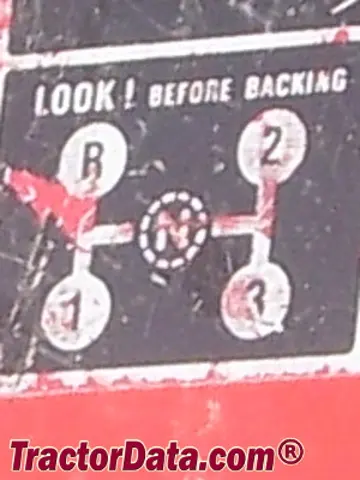

3-speed unsynchronized gear | |
6-speed creeper | |
Transmission details ...  |
International Harvester 184 Lo-Boy Power | |
|---|---|
Engine | 18 hp
13.4 kW |
PTO (claimed) | 11 hp
8.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Mechanical drum brakes | |
Open operator station. | |
Photos | |
|---|---|
 | |
International Harvester 184 Lo-Boy photos...  |
Capacity | |
|---|---|
Fuel | 8 gal
30.3 L |
Hydraulic system | 1.75 gal
6.6 L |
Hydraulics | |
|---|---|
Type | gear pump |
Capacity | 1.75 gal
6.6 L |
Pressure | 2000 psi
137.9 bar |
Pump flow | 2 gpm
7.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | I (optional) |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-magnetic |
Rear PTO Type | 1600 (counter-clockwise) |
Dimensions & Tires | |
|---|---|
Wheelbase | 64 inches
162 cm |
Weight | 1620 lbs
734 kg |
Front tire | 4.00-12 |
Rear tire | 8.3-24 |
Full dimensions and tires ...  | |
International Harvester 184 Lo-Boy attachments | |
|---|---|
60" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
184 Lo-Boy Serial Number Location | |
|---|---|
 | |
Serial number plate on the left side of the tractor, above the foot rest. |
184 Lo-Boy Serial Numbers | |
|---|---|
1977 | 43802 |
1978 | 46163 |
1979 | 48030 |
Final | 52339 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 37 |
| 42 |
Battery volts | 12 |
References | |
|---|---|
 | |
1978 Buyer's Guide published by International Harvester | |
1979 Buyer's Guide published by International Harvester | |
Buyer's Guide 1981 published by International Harvester | |
International 184 Lo-Boy Tractor published by International Harvester |
