international harvester 234
 | 1982 - 1984
Compact Utility tractorMitsubishi built | 1982 - 1984 | Compact Utility tractor | Mitsubishi built |
|---|---|---|---|---|
1982 - 1984 | ||||
Compact Utility tractor | ||||
Mitsubishi built | ||||
1982 - 1984 | |
|---|---|
Compact Utility tractor | |
Mitsubishi built |
Production | |
|---|---|
Distributor | International Harvester |
Manufacturer | Mitsubishi |
Compact Utility tractor | |
Built in Japan | |
International Harvester 234 Engine | |
|---|---|
Mitsubishi 0.8L 3-cyl diesel | |
Engine details ...  |

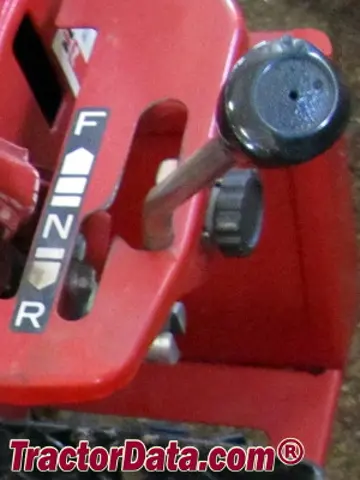

International Harvester 234 Transmissions | |
|---|---|
6-speed gear | |
hydrostatic | |
Transmission details ...  |
International Harvester 234 Power | |
|---|---|
Engine | 18 hp
13.4 kW |
PTO (claimed) | 15.2 hp
11.3 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
two-post ROPS; canopy optional |
Photos | |
|---|---|
 | |
International Harvester 234 photos...  |
Capacity | |
|---|---|
Fuel | 4.8 gal
18.2 L |
Hydraulic system | 3.1 gal
11.7 L |
Hydraulics | |
|---|---|
Capacity | 3.1 gal
11.7 L |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 |
Front PTO | independent OptOptional |
Front PTO Type | 2700 |
Dimensions & Tires | |
|---|---|
Wheelbase | 56 inches
142 cm |
Weight | 1205 lbs
546 kg |
Full dimensions and tires ...  | |
234 Serial Number Location | |
|---|---|
 | |
Serial number plate on the right side of the tractor frame, above the front axle. |
234 Serial Numbers | |
|---|---|
1982 | 8010 |
1983 | 8110 |
1984 | 8383 |
1985 | 8646 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Buyer's Guide 1982 published by International Harvester | |
200 Series Tractors published by International Harvester | |
New International Tractors published by International Harvester |
