international harvester 3288
 | 1981 - 1985
30 SeriesRow-Crop tractor | 1981 - 1985 | 30 Series | Row-Crop tractor |
|---|---|---|---|---|
1981 - 1985 | ||||
30 Series | ||||
Row-Crop tractor | ||||
1981 - 1985 | |
|---|---|
30 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Row-Crop tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 1,162 |
Original price was $40,000 in 1985 | |
International Harvester 3288 Engine | |
|---|---|
International Harvester 5.9L 6-cyl diesel | |
Engine details ...  |

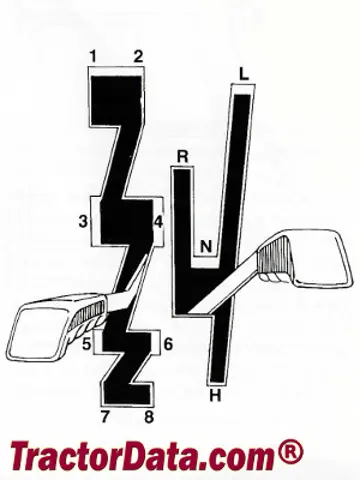

International Harvester 3288 Transmission | |
|---|---|
16-speed partial power shift | |
Transmission details ...  |
International Harvester 3288 Power | |
|---|---|
Drawbar (claimed) | 80.7 hp
60.2 kW |
PTO (claimed) | 90 hp
67.1 kW |
Drawbar (tested) | 79.71 hp
59.4 kW |
PTO (tested) | 90.46 hp
67.5 kW |

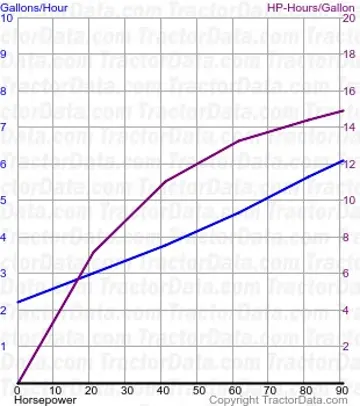

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | bull gear |
Differential lock | rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with heat and air-conditioning. Optional burgundy or western finish interiors. | |
Photos | |
|---|---|
 | |
International Harvester 3288 photos...  |
Capacity | |
|---|---|
Fuel | 50 gal
189.2 L |
Hydraulic system | 22.5 gal
85.2 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 22.5 gal
85.2 L |
Valves | 2 or 3 |
Pump flow | 15 gpm
56.8 lpm |
Total flow | 27 gpm
102.2 lpm |
Steering flow | 12 gpm
45.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | draft sensing |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2100 |
| 1000@2100 |
Dimensions & Tires | |
|---|---|
Wheelbase | 105 inches
266 cm |
Weight | 11100 to 11760 pounds |
Front tire | 9.5L-15 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
3288 Serial Numbers | |
|---|---|
Location: | Serial number plate on the right side of the tractor frame, ahead of the rear axle. |
1981 | 501 |
1982 | 1063 |
1983 | 1286 |
1984 | 1464 |
1985 | 1651 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Buyer's Guide 1982 published by International Harvester | |
International 30 Series Tractors published by International Harvester | |
Operator's Manual 3088, 3288, 3488-Hydro and 3688 Tractors (1258513C1) published in 1981 | |
Tractors 90 & 110 HP published in 1981, by International Harvester | |
3288 and 3688 Product Guide published in 1981, by International Harvester |
