international harvester 3488
 | 1981 - 1984
30 SeriesRow-Crop tractor | 1981 - 1984 | 30 Series | Row-Crop tractor |
|---|---|---|---|---|
1981 - 1984 | ||||
30 Series | ||||
Row-Crop tractor | ||||
1981 - 1984 | |
|---|---|
30 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Row-Crop tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 465 |
Original price was $50,000 in 1984 | |
International Harvester 3488 Engine | |
|---|---|
International Harvester 7.6L 6-cyl diesel | |
Engine details ...  |
International Harvester 3488 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
International Harvester 3488 Power | |
|---|---|
Drawbar (claimed) | 83 hp
61.9 kW |
PTO (claimed) | 112 hp
83.5 kW |
Drawbar (tested) | 80.50 hp
60.0 kW |
PTO (tested) | 112.56 hp
83.9 kW |

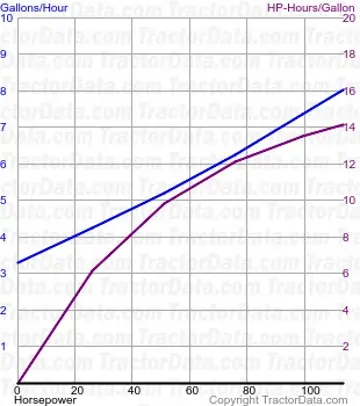

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with heat and A/C. Optional burgundy or western finish interiors. |
Photos | |
|---|---|
 | |
International Harvester 3488 photos...  |
Capacity | |
|---|---|
Fuel | 50 gal
189.2 L |
Hydraulic system | 28.5 gal
107.9 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 28.5 gal
107.9 L |
Valves | 2 or 3 |
Pump flow | 18 gpm
68.1 lpm |
Total flow | 27 gpm
102.2 lpm |
Steering flow | 12 gpm
45.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | draft sensing |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2100 |
| 1000@2100 |
Dimensions & Tires | |
|---|---|
Wheelbase | 105 inches
266 cm |
Weight | 11600 to 12880 pounds |
Front tire | 10.00-16 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
3488 Serial Numbers | |
|---|---|
Location: | Serial number plate on the right side of the tractor frame, ahead of the rear axle. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
International 30 Series Tractors published by International Harvester | |
Operator's Manual 3088, 3288, 3488-Hydro and 3688 Tractors (1258513C1) published in 1981 |
