international harvester 4300
 | 1961 - 1965
Four-wheel Drive (4WD) tractorHough built | 1961 - 1965 | Four-wheel Drive (4WD) tractor | Hough built |
|---|---|---|---|---|
1961 - 1965 | ||||
Four-wheel Drive (4WD) tractor | ||||
Hough built | ||||
1961 - 1965 | |
|---|---|
Four-wheel Drive (4WD) tractor | |
Hough built |
Production | |
|---|---|
Distributor | International Harvester |
Manufacturer | Hough |
Four-wheel Drive (4WD) tractor | |
Built in Libertyville, Illinois, USA | |
Total built | 44 |
Original price was $12,000 in 1970 | |

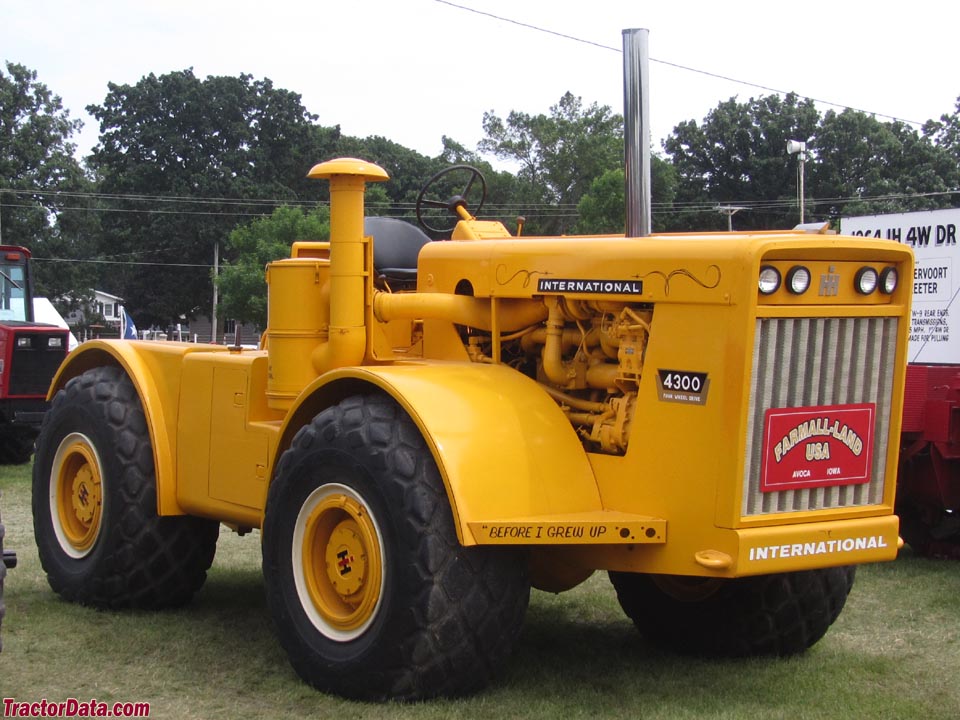

The massive model 4300 tractor was International's entry into the large four-wheel drive market. The tractor was built by Hough (manufacturer of the Pay Loader) and the final design was influenced by a desire to be larger than the John Deere 8010. Unfortunately for International, the 4300 was "too big, too soon" and production was limited. | |
International Harvester 4300 Engine | |
|---|---|
International Harvester 13.4L 6-cyl diesel | |
Engine details ...  |
International Harvester 4300 Transmissions | |
|---|---|
6-speed | |
8-speed | |
Transmission details ...  |
International Harvester 4300 Power | |
|---|---|
Engine | 300 hp
223.7 kW |
Drawbar (claimed) | 180 hp
134.2 kW |
Plows | 10 |
Drawbar (tested) | 203.32 hp
151.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Steering | hydraulic powered two- or four-wheel steering |
Air brakes brakes | |
Open operator station. Cab optional with available air-conditioning. | |
Photos | |
|---|---|
 | |
International Harvester 4300 photos...  |
Capacity | |
|---|---|
Fuel | 168 gal
635.9 L |
Steering | 60 qts
56.8 L |
Hydraulics | |
|---|---|
Valves | 3 |
Pump flow | 40 gpm
151.4 lpm |
| 55 gpmOptOptional
208.2 lpm |
Steering flow | 40 gpm
151.4 lpm |
Steering cap. | 60 qts
56.8 L |
Dimensions & Tires | |
|---|---|
Wheelbase | 120 inches
304 cm |
Weight | 29,815 lbs
13524 kg |
Front tire | 23.1-26 |
Rear tire | 23.1-26 |
Full dimensions and tires ...  | |
4300 Serial Number Location | |
|---|---|
 | |
Serial number plate below steering column |
4300 Serial Numbers | |
|---|---|
1961 | 87AH1001 |
Final | 87AH1045 |
FAQ: How to read a serial number table. | |
Links | |
|---|---|
Rare & Restored: Farm Collector article on a surviving 4300 |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 50 |
Batteries | 4 |
Battery volts | 6 |
References | |
|---|---|
 | |
International 4300 published in 1963, by International Harvester |
