international harvester 5088

1981 - 1985
50 Series
Row-Crop tractor

Transmission
Transmission	Synchro Tri-Six (STS)
Type	partial power shift
Gears	18 forward and 6 reverse
Oil capacity	174 qts 164.7 L
Left lever selects gear, right lever selects high, medium, low, or reverse range. Clutch-free on-the-move power shift in gear pairs 1/2, 3/4, and 5/6. Synchronized on-the-move shifting (with the clutch) between pairs.

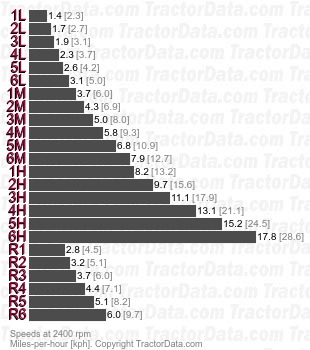

Speeds
With 18.4-38 rear tires.

Shift Pattern
