international harvester 606
 | 1962 - 1967
Utility tractor | 1962 - 1967 | Utility tractor |
|---|---|---|---|
1962 - 1967 | |||
Utility tractor | |||
1962 - 1967 | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Utility tractor | |
Total built | 7,348 |
Original price was $4,900 in 1967 | |
International Harvester 606 Engines | |
|---|---|
International Harvester 3.6L 6-cyl gasoline | |
International Harvester 3.9L 6-cyl diesel | |
International Harvester 3.6L 6-cyl LP gas | |
Gas Fuel tank | 22.7 gal
85.9 L |
Diesel Fuel tank | 22.7 gal
85.9 L |
LP-gas Fuel tank | 26.6 gal
100.7 L |
Engine details ...  | |
International Harvester 606 Transmissions | |
|---|---|
10-speed | |
5-speed | |
Transmission details ...  |
International Harvester 606 Power | |
|---|---|
Drawbar (claimed) | 45 hp
33.6 kW |
PTO (claimed) | 50 hp
37.3 kW |
Drawbar (tested) | 46.71 hp
34.8 kW |
PTO (tested) | 54.31 hp
40.5 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Independent mechanical disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
International Harvester 606 photos...  |
Hydraulics | |
|---|---|
Valves | 0 to 2 |
Total flow | 12 gpm
45.4 lpm |
| 17 gpmOptOptional
64.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 78 inches
198 cm |
Weight | 5215 to 5465 pounds |
Front tire | 6.00-16 |
Rear tire | 14.9-28 |
Full dimensions and tires ...  | |
International Harvester 606 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
606 Serial Number Location | |
|---|---|
 | |
Serial number plate on the clutch housing on the right side of tractor. |
606 Serial Numbers | |
|---|---|
1962 | 501 |
1963 | 1702 |
1964 | 3214 |
1965 | 5041 |
1966 | 6960 |
1967 | 7922 |
FAQ: How to read a serial number table. | |
Belt Pulley | |
|---|---|
Diameter | 11 inches
27 cm |
RPM | 1062 |
Speed | 3057 ft/min
931.77 meters/min |

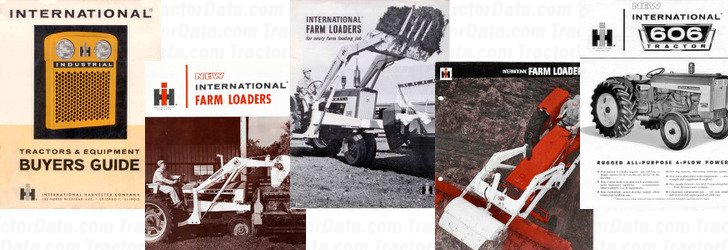

References | |
|---|---|
 | |
Industrial Tractors & Equipment Buyers Guide published in 1962, by International Harvester | |
Farm Loaders published in 1962, by International Harvester | |
Farm Loaders published in 1965, by International Harvester | |
Farm Loaders published in 1970, by International Harvester | |
New International 606 Tractor published by International Harvester |
