international harvester 654
 | 1972 - 1974
Utility tractor | 1972 - 1974 | Utility tractor |
|---|---|---|---|
1972 - 1974 | |||
Utility tractor | |||
1972 - 1974 | |
|---|---|
Utility tractor |
Transmission options | |
|---|---|
8-speed partially synchronized | |
12-speed partial power shift |
Transmission | |
|---|---|
Type | partially synchronized |
Gears | 8 forward and 4 reverse |
Oil capacity | 44.4 qts
42.0 L |

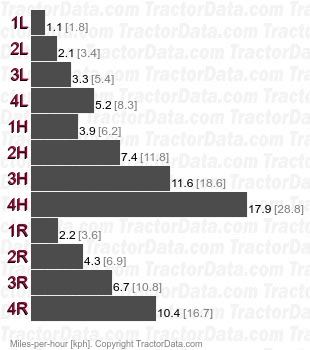

Speeds | |
|---|---|
With 11-36 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | Agriomatic S |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Oil capacity | 37 qts
35.0 L |
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle. | |
Speeds | |
|---|---|
With 11-36 rear tires. | |
 |
