international harvester 7288
 | 1985
70 SeriesFour-wheel Drive (4WD) tractor | 1985 | 70 Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1985 | ||||
70 Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1985 | |
|---|---|
70 Series | |
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Four-wheel Drive (4WD) tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 19 |
International Harvester 7288 Engine | |
|---|---|
International Harvester 7.6L 6-cyl diesel | |
Engine details ...  |

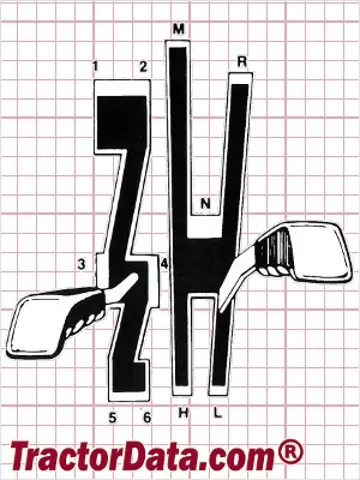

International Harvester 7288 Transmission | |
|---|---|
18-speed partial power shift | |
Transmission details ...  |
International Harvester 7288 Power | |
|---|---|
Engine | 210 hp
156.6 kW |
PTO (claimed) | 175 hp
130.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | hydraulic |
Articulated power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 89 gal
336.9 L |
| 159 gal*Total capacity with optional 70 gallon tank.
601.8 L |
Hydraulic system | 43 gal
162.8 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 43 gal
162.8 L |
Rear valves | 2 to 4 |
Pump flow | 28 gpm
106.0 lpm |
Total flow | 86 gpm
325.5 lpm |
Steering flow | 12 gpm
45.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | position and draft control |
Rear lift | 8340 lbs
3783 kg |
| 9240 lbsOptOptional
4191 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 115.5 inches
293 cm |
Weight | 19750 lbs
8958 kg |
Front tire | 20.8-38 |
Rear tire | 20.8-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
Super 70 4-Wheel Drive Tractors published in 1985, by International Harvester | |
New Super 70 Series published in 1985, by International Harvester | |
Agricultural Equipment Reference Catalog published in 1985, by International Harvester |
