international harvester 784
 | 1977 - 1984
84 SeriesUtility tractor | 1977 - 1984 | 84 Series | Utility tractor |
|---|---|---|---|---|
1977 - 1984 | ||||
84 Series | ||||
Utility tractor | ||||
1977 - 1984 | |
|---|---|
84 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Utility tractor | |
Built in Doncaster, England | |
Original price was $22,300 in 1984 | |
The International Harvester 784 was available in three configurations: row-crop, utility, and low-profile. The front axle and rear wheel were the primary difference between the three versions of the 784. | |
International Harvester 784 Engine | |
|---|---|
International Harvester 4.0L 4-cyl diesel | |
Engine details ...  |
International Harvester 784 Transmissions | |
|---|---|
8-speed syncromesh | |
16-speed two-speed power shift | |
Transmission details ...  |
International Harvester 784 Power | |
|---|---|
Drawbar (claimed) | 58.6 hp
43.7 kW |
PTO (claimed) | 67.4 hp
50.3 kW |
Drawbar (tested) | 56.83 hp
42.4 kW |
PTO (tested) | 67.48 hp
50.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Independent hydraulic wet disc brakes | |
ROPS standard, except on low-profile. Canopy optional. Cab optional on row-crop. |
Photos | |
|---|---|
 | |

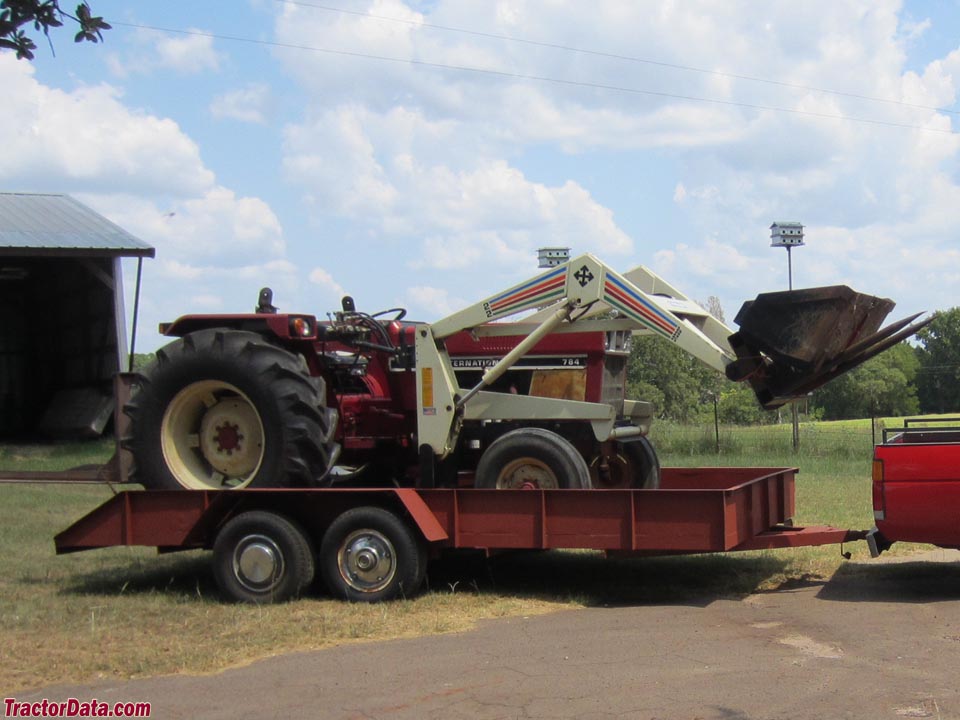

International Harvester 784 photos...  |
Capacity | |
|---|---|
Fuel | 20 gal
75.7 L |
Hydraulic system | 9 gal
34.1 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 9 gal
34.1 L |
Valves | 1 or 2 |
Pump flow | 13 gpm
49.2 lpm |
| 15.4 gpm (optional)
58.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 3600 lbs
1632 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Utility Wheelbase | 88 inches
223 cm |
Row-crop Wheelbase | 84.5 inches
214 cm |
4WD Wheelbase | 85.2 inches
216 cm |
Low-profile Wheelbase | 83.75 inches
212 cm |
Weight | 5850 to 7108 pounds |
Front tire | 7.50-16 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
784 Serial Numbers | |
|---|---|
Location: | Serial number plate on the right side of the frame, above the front axle. |
1978 | 501 |
1979 | 1442 |
1980 | 2752 |
1981 | 5906 |
1982 | 8001 |
1983 | 8219 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1979 Buyer's Guide published by International Harvester | |
Buyer's Guide 1981 published by International Harvester | |
Buyer's Guide 1982 published by International Harvester | |
84 Series Hi-Performers published in 1978, by International Harvester | |
International Series 84 Utility/Row-Crop Tractors published in 1978, by International Harvester | |
International Series 84 tractors published in 1982, by International Harvester | |
International Series 84 Tractors published in 1983, by International Harvester | |
Agricultural Equipment Reference Catalog published in 1980, by International Harvester |
