international harvester hydro 86
 | 1976 - 1980
86 SeriesRow-Crop tractor | 1976 - 1980 | 86 Series | Row-Crop tractor |
|---|---|---|---|---|
1976 - 1980 | ||||
86 Series | ||||
Row-Crop tractor | ||||
1976 - 1980 | |
|---|---|
86 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Row-Crop tractor | |
Original price was $23,400 in 1980 | |
International Harvester Hydro 86 Engines | |
|---|---|
International Harvester 5.1L 6-cyl diesel | |
International Harvester 4.8L 6-cyl gasoline | |
Engine details ...  |
International Harvester Hydro 86 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
International Harvester Hydro 86 Power | |
|---|---|
Drawbar (claimed) | 53.4 hp
39.8 kW |
PTO (claimed) | 69.51 hp
51.8 kW |
Drawbar (tested) | 53.86 hp
40.2 kW |
PTO (tested) | 70.89 hp
52.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Differential dry disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
International Harvester Hydro 86 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Valves | 1 |
Pump flow | 12 gpm
45.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Weight | 8200 lbs
3719 kg |
Front tire | 7.50-16 |
Rear tire | 15.5-38 |
Full dimensions and tires ...  | |

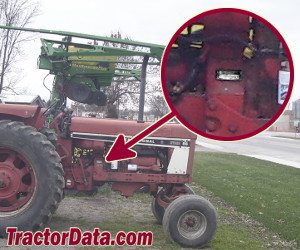

Hydro 86 Serial Number Location | |
|---|---|
 | |
Serial number plate on the left side of the tractor's clutch housing. |
References | |
|---|---|
 | |
1978 Buyer's Guide published by International Harvester | |
1979 Buyer's Guide published by International Harvester |
