international harvester td 14
 | 1939 - 1958
Agricultural Crawler tractor | 1939 - 1958 | Agricultural Crawler tractor |
|---|---|---|---|
1939 - 1958 | |||
Agricultural Crawler tractor | |||
1939 - 1958 | |
|---|---|
Agricultural Crawler tractor |
Nebraska Tractor Test 343 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 343 | |
|---|---|
Diesel 6-speed crawler
May 6 - 31, 1940
Link: Nebraska Tractor Test 343 file | |
Belt power (max) | 61.56 hp
45.9 kW |

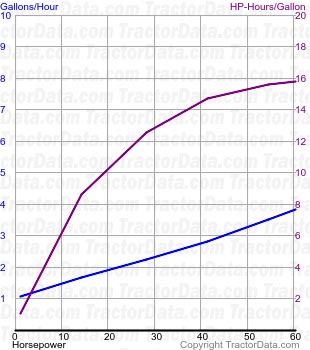

Belt fuel use (max) | 3.9 gal/hour
14.8 l/hour |
Drawbar performance | |
Max power | 51.82 hp
38.6 kW |
Gear 2 used for power test. | |
Max pull | 13,426 lbs
6090 kg |
Gear 1 used for pull test. | |
