international harvester titan 30 60
 | 1914 - 1917
Titan SeriesStandard-tread tractor | 1914 - 1917 | Titan Series | Standard-tread tractor |
|---|---|---|---|---|
1914 - 1917 | ||||
Titan Series | ||||
Standard-tread tractor | ||||
1914 - 1917 | |
|---|---|
Titan Series | |
Standard-tread tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Standard-tread tractor | |
Built in Milwaukee, Wisconsin, USA | |
International Harvester Titan 30-60 Engine | |
|---|---|
International Harvester 29.2L 2-cyl kerosene | |
Fuel tank | 47 gal
177.9 L |
Aux. fuel | 26.5 gal
100.3 L |
Engine details ...  | |
International Harvester Titan 30-60 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
International Harvester Titan 30-60 Power | |
|---|---|
Drawbar (claimed) | 30 hp
22.4 kW |
Belt (claimed) | 60 hp
44.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station with canopy. |
Dimensions & Tires | |
|---|---|
Weight | 20300 to 20600 pounds |
Front tire | 44x10 |
Rear tire | 72x24 |
Full dimensions and tires ...  | |
Titan 30-60 Serial Numbers | |
|---|---|
1914 | TJ101 |
1914 | TK101 |
1915 | TK111 |
1915 | TU101 |
1916 | TU134 |
1917 | TU225 |
FAQ: How to read a serial number table. | |
Belt Pulley | |
|---|---|
Diameter | 30 inches
76 cm |
Width | 10.5 inches
26 cm |

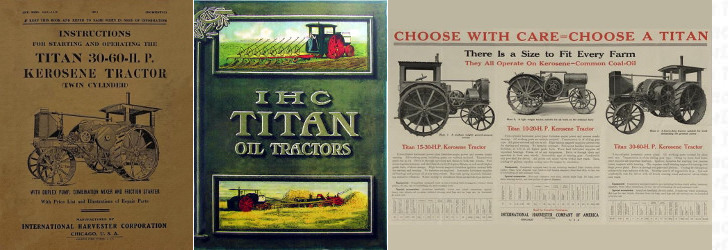

References | |
|---|---|
 | |
Instructions for Starting and Operating the Titan 30-60-H.P. Kerosene Tractors (INT. 2025) published in 1916 | |
IHC Titan Oil Tractors published by International Harvester | |
Choose With Care = Choose a Titan published in 1916, by International Harvester |
