iseki ta290
 | 1985 - 1987
Landleader TA0 SeriesCompact Utility tractor | 1985 - 1987 | Landleader TA0 Series | Compact Utility tractor |
|---|---|---|---|---|
1985 - 1987 | ||||
Landleader TA0 Series | ||||
Compact Utility tractor | ||||
1985 - 1987 | |
|---|---|
Landleader TA0 Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TA290 | 2WD |
TA290F | 4WD |
Iseki TA290 Engine | |
|---|---|
Isuzu 1.5L 4-cyl diesel | |
Fuel tank | 11.1 gal
42.0 L |
Engine details ...  | |

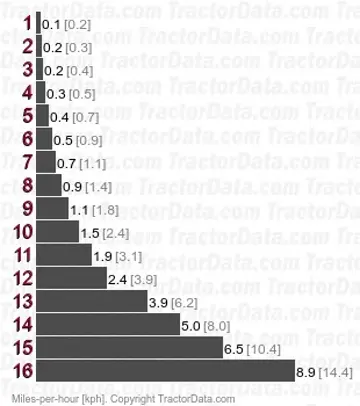

Iseki TA290 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Iseki TA290 Power | |
|---|---|
Engine | 27 hp
20.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 564@2800 |
| 705@2800 |
| 837@2800 |
| 1308@2800 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.1 inches
180 cm |
Weight | 3053 to 3285 pounds |
Front tire | 5.50-16 |
2WD Rear tire | 12.4-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

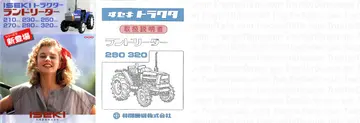

References | |
|---|---|
 | |
Landleader published in 1987, by Iseki | |
Operator's Manual Landleader 290 - 320 (1564-912-001-3) |
