j i case 1270
 | 1972 - 1978
Row-Crop tractor | 1972 - 1978 | Row-Crop tractor |
|---|---|---|---|
1972 - 1978 | |||
Row-Crop tractor | |||
1972 - 1978 | |
|---|---|
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Row-Crop tractor | |
Built in Racine, Wisconsin, USA | |
Original price was $30,000 in 1978 | |
J.I. Case 1270 Engine | |
|---|---|
J.I. Case 7.4L 6-cyl diesel | |
Fuel tank | 80 gal
302.8 L |
Engine details ...  | |
J.I. Case 1270 Transmission | |
|---|---|
12-speed partial power shift | |
Transmission details ...  |
J.I. Case 1270 Power | |
|---|---|
Drawbar (claimed) | 109 hp
81.3 kW |
PTO (claimed) | 127 hp
94.7 kW |
Drawbar (tested) | 116.77 hp
87.1 kW |
PTO (tested) | 135.39 hp
101.0 kW |

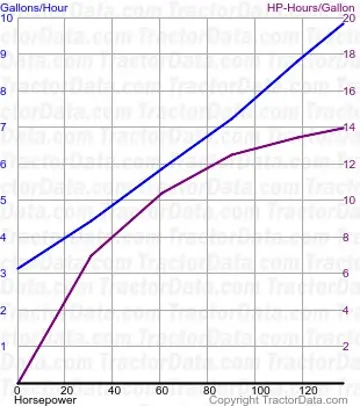

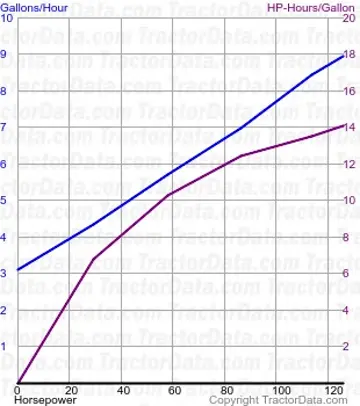

Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Differential hydraulic wet disc brakes | |
Cab standard |
Photos | |
|---|---|
 | |
J.I. Case 1270 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2000 psi
137.9 bar |
Valves | 2 |
Pump flow | 20 gpm
75.7 lpm |
Total flow | 28 gpm
106.0 lpm |
| 48 gpmOptOptional
181.7 lpm |
Steering flow | 8 gpm
30.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 104 inches
264 cm |
Weight | 13,400 lbs
6078 kg |
Front tire | 10.00-16 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Batteries | 2 |
Battery CCA | 300 |
Battery volts | 12 |
Battery Group | 30H |
References | |
|---|---|
 | |
Agri King 1370 - 1270 - 1175 High-Production Tractors published in 1973, by J.I. Case | |
1975 Spring Buyers Guide published by J.I. Case | |
Time-saving experts published in 1975, by J.I. Case | |
"Specializing" for Specialists published in 1978, by J.I. Case |
