j i case 1490
 | 1980 - 1983
90 SeriesUtility tractor | 1980 - 1983 | 90 Series | Utility tractor |
|---|---|---|---|---|
1980 - 1983 | ||||
90 Series | ||||
Utility tractor | ||||
1980 - 1983 | |
|---|---|
90 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Utility tractor | |
Built in Meltham Mills, Huddersfield, England | |
Original price was $25,400 in 1983 | |
The Case model 1490 is the same as the David Brown model 1490. | |
J.I. Case 1490 Engine | |
|---|---|
J.I. Case 3.6L 4-cyl diesel | |
Fuel tank | 36 gal
136.3 L |
Engine details ...  | |
J.I. Case 1490 Transmissions | |
|---|---|
12-speed synchromesh | |
12-speed partial power shift | |
Transmission details ...  |
J.I. Case 1490 Power | |
|---|---|
Engine | 83 hp
61.9 kW |
PTO (claimed) | 70 hp
52.2 kW |
Drawbar (tested) | 60.31 hp
45.0 kW |
PTO (tested) | 70.51 hp
52.6 kW |

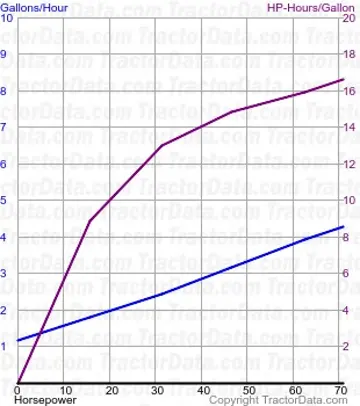

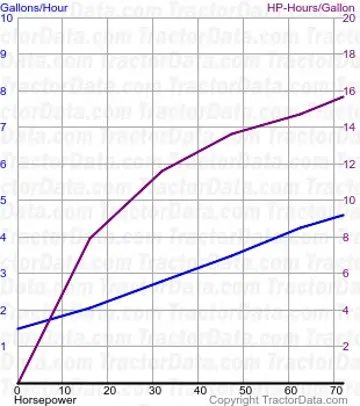

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Two-post ROPS. Cab optional. |
Photos | |
|---|---|
 | |
J.I. Case 1490 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2000 psi
137.9 bar |
Valves | 1 |
Total flow | 8.4 gpm
31.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 4,400 lbs
1995 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 88.5 inches
224 cm |
Weight | 6490 to 7580 pounds |
Front tire | 11L-15 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
J.I. Case 1490 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
1490 Serial Numbers | |
|---|---|
Location: | Serial number stamped into the top of the tractor's frame on the right side, next to the engine. |
1980 | 11180101 |
1981 | 11182782 |
1982 | 11185693 |
1983 | 11188540 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Model 56L & 66L Farm Loaders published in 1980, by J.I. Case | |
Models 74L & 56L Farm Loaders published in 1983, by J.I. Case | |
1490/1690 General purpose Tractors published in 1981, by J.I. Case | |
A great new Ninety Series General Purpose line published in 1980, by J.I. Case | |
Power for all-season productivity published in 1982, by J.I. Case | |
The Tractor Specialist Buyers Guide published in 1983, by J.I. Case |
