j i case 1594
 | 1983 - 1984
94 SeriesUtility tractor | 1983 - 1984 | 94 Series | Utility tractor |
|---|---|---|---|---|
1983 - 1984 | ||||
94 Series | ||||
Utility tractor | ||||
1983 - 1984 | |
|---|---|
94 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Utility tractor | |
Built in Meltham Mills, Huddersfield, England | |
Original price | $26,000 (1988) |
J.I. Case 1594 Engine | |
|---|---|
Case 5.4L 6-cyl diesel | |
Fuel tank | 36 gal
136.3 L |
Engine details ...  | |
J.I. Case 1594 Transmissions | |
|---|---|
12-speed synchromesh | |
12-speed partial power shift | |
Transmission details ...  |
J.I. Case 1594 Power | |
|---|---|
Engine | 97 hp
72.3 kW |
Drawbar (claimed) | 74 hp
55.2 kW |
PTO (claimed) | 86 hp
64.1 kW |
Drawbar (tested) | 72.17 hp
53.8 kW |
PTO (tested) | 85.90 hp
64.1 kW |

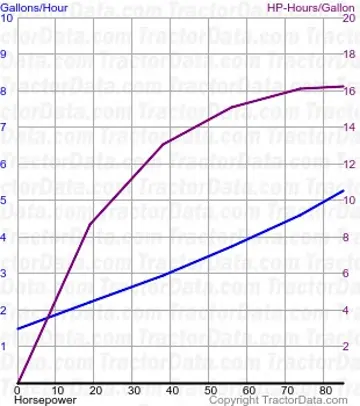

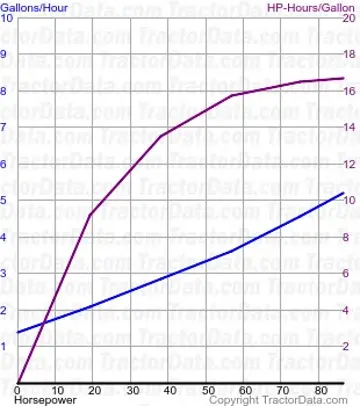

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
ROPS or cab. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2600 psi
179.3 bar |
Valves | 2 |
Total flow | 10.5 gpm
39.7 lpm |
| 20.1 gpm (tandem)
76.1 lpm |
Steering flow | 7.7 gpm
29.1 lpm |
Steering press. | 1850 psi
127.6 bar |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 7,440 lbs
3374 kg |
Rear lift (at 24"/610mm) | 6,290 lbs
2853 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 100 inches
254 cm |
Weight | 9,290 lbs
4213 kg |
Front tire | 10.00-16 |
Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
J.I. Case 1594 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
1594 Serial Numbers | |
|---|---|
Location: | On right side of main frame |
1983 | 11219050 |
1984 | 11219213 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
| 65 (heavy duty) |
Battery CCA | 420 |
| 550 (heavy duty) |
Battery volts | 12 |
Battery AH | 96 |
| 128 (heavy duty) |
References | |
|---|---|
 | |
Models 74L & 56L Farm Loaders published in 1983, by J.I. Case | |
1594 - 1694 published in 1983, by J.I. Case | |
94 Series published in 1983, by J.I. Case | |
1194/1294/1394/1494/1594 Tractors published in 1983, by J.I. Case | |
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case | |
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case |
