j i case 1594

1983 - 1984

94 Series

Utility tractor

94 Series

Utility tractor

NTTL 1546: diesel synchromesh 2WD

NTTL 1547: diesel Hydra-Shift 2WD

Diesel synchromesh 2WD October 24 - November 2, 1984 Link: Nebraska Tractor Test 1546 file

PTO performance

Power at rated engine speed

85.90 hp 64.1 kW

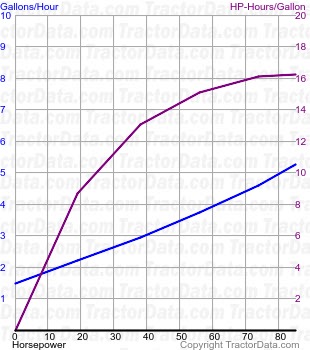

Fuel use

5.2 gal/hour 19.7 l/hour

Power at rated PTO speed

80.83 hp 60.3 kW

Fuel use

4.7 gal/hour 17.8 l/hour

Drawbar performance

Max power

72.17 hp 53.8 kW

Fuel use

5.1 gal/hour 19.3 l/hour

Gear 7 used for power test.

Max pull

8,331 lbs 3778 kg

Gear 4 used for pull test.

Diesel Hydra-Shift 2WD October 23 - 30, 1984 Link: Nebraska Tractor Test 1547 file

PTO performance

Power at rated engine speed

85.54 hp 63.8 kW

Fuel use

5.2 gal/hour 19.7 l/hour

Power at rated PTO speed

81.94 hp 61.1 kW

Fuel use

4.9 gal/hour 18.5 l/hour

Drawbar performance

Max power

69.37 hp 51.7 kW

Fuel use

5.1 gal/hour 19.3 l/hour

Gear 7 used for power test.

Max pull

8,198 lbs 3718 kg

Gear 4 used for pull test.
