j i case 1896

overview engine transmission dimensions tests

	1984 - 1985 96 SeriesRow-Crop tractor	1984 - 1985	96 Series	Row-Crop tractor
1984 - 1985
96 Series
Row-Crop tractor

1984 - 1985
96 Series
Row-Crop tractor

Series map: 1896↑ 1985-198918962096105.6hp*128.9hp**Estimated engine power for comparison only.

Note: the J.I. Case model 1896 is the same as the CaseIH 1896. The following data is from the 1896 listing.

Production
Manufacturer	J.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $35,000 in 1989

J.I. Case 1896 Engine
CDC 5.9L 6-cyl diesel
Engine details ...

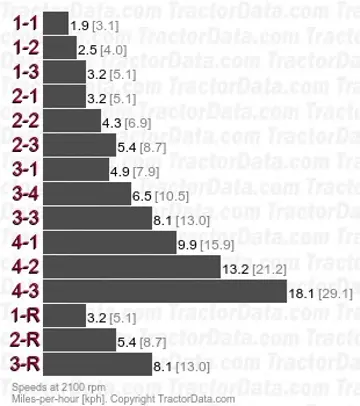

J.I. Case 1896 Transmission
12-speed three-speed power shift
Transmission details ...

J.I. Case 1896 Power
PTO (claimed)	95 hp 70.8 kW
Drawbar (tested)	84.51 hp 63.0 kW
PTO (tested)	95.92 hp 71.5 kW

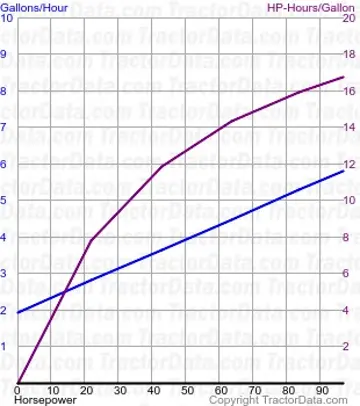

Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electric rear
Power steering
Differential hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Photos

J.I. Case 1896 photos...

Capacity
Fuel	65 gal 246.0 L
Hydraulic system	25 gal 94.6 L

Hydraulics
Type	closed center
Capacity	25 gal 94.6 L
Pressure	2250 psi 155.1 bar
Valves	2 to 4
Pump flow	23 gpm 87.1 lpm
Steering flow	8 gpm 30.3 lpm

Tractor hitch
Rear Type	III/II
Rear lift	6600 lbs 2993 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	108 inches 274 cm
Weight	13,495 lbs 6121 kg
Front tire	11.00-16
2WD Rear tire	18.4-38
Full dimensions and tires ...

1896 Serial Numbers
1984	9931800
1985	9938100
1986	9941573
1987	17895137
1988	17895512
1989	17895992
FAQ: How to read a serial number table.

Electrical
Ground	negative
Charging system	alternator
Charging amps	105
Battery volts	12

References

96 Series published in 1984, by J.I. Case
