j i case 2094
 | 1984
94 SeriesRow-Crop tractor | 1984 | 94 Series | Row-Crop tractor |
|---|---|---|---|---|
1984 | ||||
94 Series | ||||
Row-Crop tractor | ||||
1984 | |
|---|---|
94 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Row-Crop tractor | |
Built in Racine, Wisconsin, USA | |
Original price was $43,400 in 1984 | |
J.I. Case 2094 Engine | |
|---|---|
Case 8.3L 6-cyl diesel | |
Engine details ...  |

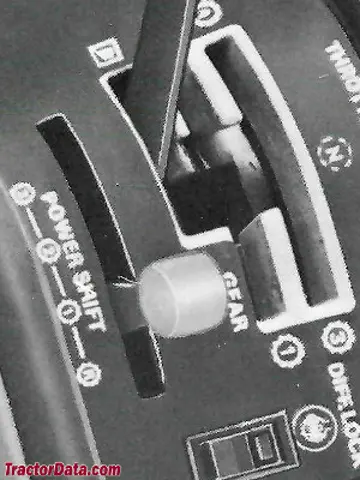

J.I. Case 2094 Transmission | |
|---|---|
12-speed three-speed power shift | |
Transmission details ...  |
J.I. Case 2094 Power | |
|---|---|
Engine | 127 hp
94.7 kW |
Drawbar (claimed) | 100 hp
74.6 kW |
PTO (claimed) | 110 hp
82.0 kW |
Drawbar (tested) | 98.66 hp
73.6 kW |
PTO (tested) | 111.50 hp
83.1 kW |

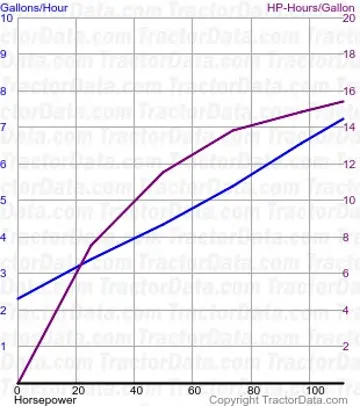

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Four-post ROPS. Silent Guardian cab optional with air-conditioning. |
Photos | |
|---|---|
 | |
J.I. Case 2094 photos...  |
Capacity | |
|---|---|
Fuel | 65 gal
246.0 L |
| 25 gal (optional auxiliary tank)
94.6 L |
Hydraulic system | 25 gal
94.6 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 25 gal
94.6 L |
Pressure | 2250 psi
155.1 bar |
Valves | 2 to 4 *3 only with 4WD |
Pump flow | 23 gpm
87.1 lpm |
Steering flow | 8 gpm
30.3 lpm |
Steering press. | 2000 psi
137.9 bar |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 6,600 lbs
2993 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 104 inches
264 cm |
| 110 inches*Optional long wheelbase.
279 cm |
Weight | 10950 to 14190 pounds |
Front tire | 11.00x16 |
Rear tire | 18.4x38 |
Full dimensions and tires ...  | |
2094 Serial Numbers | |
|---|---|
Location: | Inside cab or on right-front frame |
1984 | 9931800 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 72 |
| 105 OptOptional |
Battery volts | 12 |
References | |
|---|---|
 | |
2094 - 2294 published in 1983, by J.I. Case | |
94 Series published in 1983, by J.I. Case | |
2094/2294/2394/2594 Tractors published in 1983, by J.I. Case | |
Product Information - Case 94 Series Tractors published in 1983, by J.I. Case | |
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case | |
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case |
