j i case 310e
 | 1961 - 1962
Agricultural Crawler tractor | 1961 - 1962 | Agricultural Crawler tractor |
|---|---|---|---|
1961 - 1962 | |||
Agricultural Crawler tractor | |||
1961 - 1962 | |
|---|---|
Agricultural Crawler tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Agricultural Crawler tractor | |
Variants | |
|---|---|
310E CL | crawler loader |
J.I. Case 310E Engines | |
|---|---|
J.I. Case 3.1L 4-cyl diesel | |
J.I. Case 2.4L 4-cyl gasoline | |
Engine details ...  |
J.I. Case 310E Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
J.I. Case 310E Power | |
|---|---|
Engine | 42 hp
31.3 kW |
Drawbar (claimed) | 30 hp
22.4 kW |
Belt (claimed) | 36 hp
26.8 kW |
Plows | 3 |
Drawbar (tested) | 29.56 hp
22.0 kW |
PTO (tested) | 36.89 hp
27.5 kW |

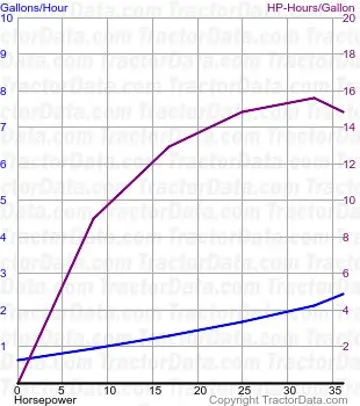

Performance test details ...  | |
Mechanical | |
|---|---|
Drive | crawler |
Contracting band brakes | |
Open operator station. | |
Photos | |
|---|---|
 | |
J.I. Case 310E photos...  |
Capacity | |
|---|---|
Fuel | 17 gal
64.3 L |
Hydraulic system | 9 gal
34.1 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 9 gal
34.1 L |
Pressure | 1500 psi
103.4 bar |
Pump flow | 15 gpm
56.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I OptOptional |
Rear lift | 700 lbs
317 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1727 |
Dimensions & Tracks | |
|---|---|
Wheelbase | 57 inches
144 cm |
Weight | 5076 to 7545 pounds |
14-inch tracks | |
Full dimensions and tracks ...  | |
J.I. Case 310E attachments | |
|---|---|
blade | |
Attachment details ...  |
310E Serial Numbers | |
|---|---|
1961 | 3016001 |
1962 | 3018001 |
FAQ: How to read a serial number table. | |
Belt Pulley | |
|---|---|
Diameter | 8.5 inches
21 cm |
Width | 6.5 inches
16 cm |
RPM | 1160 |
Speed | 2581 ft/min
786.69 meters/min |
References | |
|---|---|
 | |
Model 310 Crawler Tractor and Equipment published in 1961, by J.I. Case | |
310E Tractor Bulldozer published in 1961, by J.I. Case | |
310E Agricultural Crawler published in 1960, by J.I. Case | |
Model 310E Crawler published in 1961, by J.I. Case |
