j i case 611 b
 | 1958 - 1959
600B SeriesRow-Crop tractor | 1958 - 1959 | 600B Series | Row-Crop tractor |
|---|---|---|---|---|
1958 - 1959 | ||||
600B Series | ||||
Row-Crop tractor | ||||
1958 - 1959 | |
|---|---|
600B Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Row-Crop tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 3,213 |
Original price was $4,000 in 1960 | |
Often referred to as the Case 600B, the Case 611-B was the row-crop version of the 600B series which also included a standard front and an orchard variant. The 611-B could be fitted with either a tricycle front or an adjustable wide front. The Case-O-Matic transmission was standard equipment, with the 500B series tractors using the same engine but with a conventional transmission. | |
Variants | |
|---|---|
610B | standard front |
611B | row-crop front |
614B | orchard |
J.I. Case 611-B Engine | |
|---|---|
J.I. Case 2.7L 4-cyl gasoline | |
Engine details ...  |
J.I. Case 611-B Transmission | |
|---|---|
8-speed torque converter | |
Transmission details ...  |
J.I. Case 611-B Power | |
|---|---|
PTO (claimed) | 45 hp
33.6 kW |
Drawbar (tested) | 37.04 hp
27.6 kW |
PTO (tested) | 44.56 hp
33.2 kW |

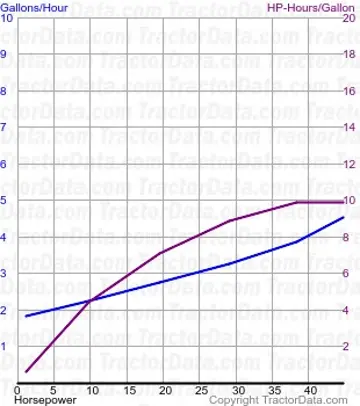

Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
J.I. Case 611-B photos...  |
Capacity | |
|---|---|
Fuel | 13.8 gal
52.2 L |
Hydraulic system | 3 gal
11.4 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 3 gal
11.4 L |
Pressure | 1200 psi
82.7 bar |
Tractor hitch | |
|---|---|
Type | Case Eagle Hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 541@1970 |
Dimensions & Tires | |
|---|---|
Wheelbase | 87 inches
220 cm |
Weight | 4885 lbs
2215 kg |
Front tire | 6.00-16 |
Rear tire | 12.4-36 |
Full dimensions and tires ...  | |
J.I. Case 611-B attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
611-B Serial Numbers | |
|---|---|
Location: | Serial number plate on instrument panel |
1958 | 6095001 |
1959 | 6120001 |
FAQ: How to read a serial number table. | |
Belt Pulley | |
|---|---|
Diameter | 9.25 inches
23 cm |
Width | 6.4 inches
16 cm |
RPM | 1360 |
Speed | 3290 ft/min
1002.79 meters/min |
Electrical | |
|---|---|
Ground | positive |
Battery volts | 12 |
Battery AH | 50 |
References | |
|---|---|
 | |
J.I. Case presents published in 1957 |
