jacobsen lawn tractors gt 12h
 | 1972 - 1976
GT SeriesGarden tractor | 1972 - 1976 | GT Series | Garden tractor |
|---|---|---|---|---|
1972 - 1976 | ||||
GT Series | ||||
Garden tractor | ||||
1972 - 1976 | |
|---|---|
GT Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Jacobsen |
Garden tractor | |
Built in Racine, Wisconsin, USA | |
Variants | |
|---|---|
GT-12 | gear drive |
GT-12H | hydrostatic |
Jacobsen GT-12H Engine | |
|---|---|
12HP Kohler 476cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Jacobsen GT-12H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. Vinyl weather cab optional. |
Photos | |
|---|---|
 | |

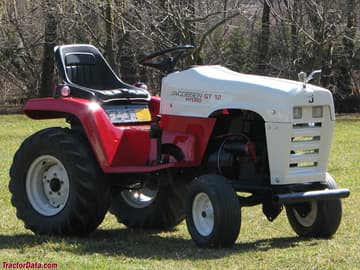

Jacobsen GT-12H photos...  |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Front PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Jacobsen GT-12H attachments | |
|---|---|
50" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
Battery AH | 24 |
References | |
|---|---|
 | |
The GT Garden Tractor published in 1972, by Jacobsen | |
GT Tractors published in 1974, by Jacobsen |
 | |
|---|---|
