john deere 2150
 | 1983 - 1986
2050 SeriesUtility tractor | 1983 - 1986 | 2050 Series | Utility tractor |
|---|---|---|---|---|
1983 - 1986 | ||||
2050 Series | ||||
Utility tractor | ||||
1983 - 1986 | |
|---|---|
2050 Series | |
Utility tractor |
Transmission options | |
|---|---|
8-speed partially synchronized | |
16-speed two-speed power shift | |
8-speed power shuttle |
Transmission | |
|---|---|
Transmission | John Deere Top-Shaft Synchronized |
Type | partially synchronized |
Gears | 8 forward and 4 reverse |
Four gears in two ranges, plus reverse range. Synchronized shifting between gears. | |
Speeds | |
|---|---|
With 13.6-28 rear tires. | |
 |

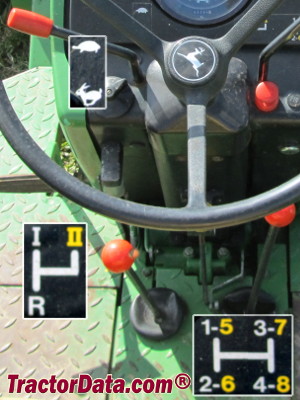

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | John Deere Hi-Lo TSS |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
The Hi-Low adds a hydraulic power shift to the standard TSS transmission. A left-hand lever enables a clutchless shift between direct (high) range and a lower range. | |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | John Deere Direction Reverser |
Type | power shuttle |
Gears | 8 forward and 4 reverse |
The Direction Reverser transmission provides clutchless hydraulic shuttle shifting using a left-hand reverser lever. Reverser not available with 4WD or cab. Reverse only operates in low range. | |
Speeds | |
|---|---|
With 13.6-28 rear tires. | |
 |
