john deere 2155
 | 1987 - 1992
55 Utility SeriesUtility tractor | 1987 - 1992 | 55 Utility Series | Utility tractor |
|---|---|---|---|---|
1987 - 1992 | ||||
55 Utility Series | ||||
Utility tractor | ||||
1987 - 1992 | |
|---|---|
55 Utility Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Mannheim, Baden-Württemberg, Germany | |
Original price was $18,000 in 1992 | |
John Deere 2155 Engine | |
|---|---|
John Deere 2.9L 3-cyl diesel | |
Fuel tank | 17.7 gal
67.0 L |
Engine details ...  | |
John Deere 2155 Transmissions | |
|---|---|
8-speed non-synchronized | |
8-speed partially synchronized | |
16-speed partial power shift | |
8-speed power shuttle | |
Transmission details ...  |
John Deere 2155 Power | |
|---|---|
Engine | 55 hp
41.0 kW |
CST PTO (claimed) | 45 hp
33.6 kW |
TSS PTO (claimed) | 46 hp
34.3 kW |
Drawbar (tested) | 37.4 hp
27.9 kW |
PTO (tested) | 45.6 hp
34.0 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | inboard planetary |
Differential lock | mechanical rear |
Power steering | |
Differential hydraulic wet disc brakes | |
Two-post fixed ROPS. | |
Photos | |
|---|---|
 | |
John Deere 2155 photos...  |
Hydraulics | |
|---|---|
Type | closed center |
Pressure | 2250 psi
155.1 bar |
Valves | 0 to 3 |
Pump flow | 12 gpm
45.4 lpm |
Total flow | 13 gpm
49.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | lower-link draft sensing |
Rear lift (at 24"/610mm) | 2584 lbs
1172 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live *Two-stage clutch |
| independent OptOptional |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2070 |
Mid PTO | live OptOptional |
Mid PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 80.7 inches
204 cm |
4WD Wheelbase | 80.9 inches
205 cm |
Weight | 5105 to 5986 pounds |
Front tire | 6.50-16 |
2WD Rear tire | 13.6-28 |
Full dimensions and tires ...  | |
John Deere 2155 attachments | |
|---|---|

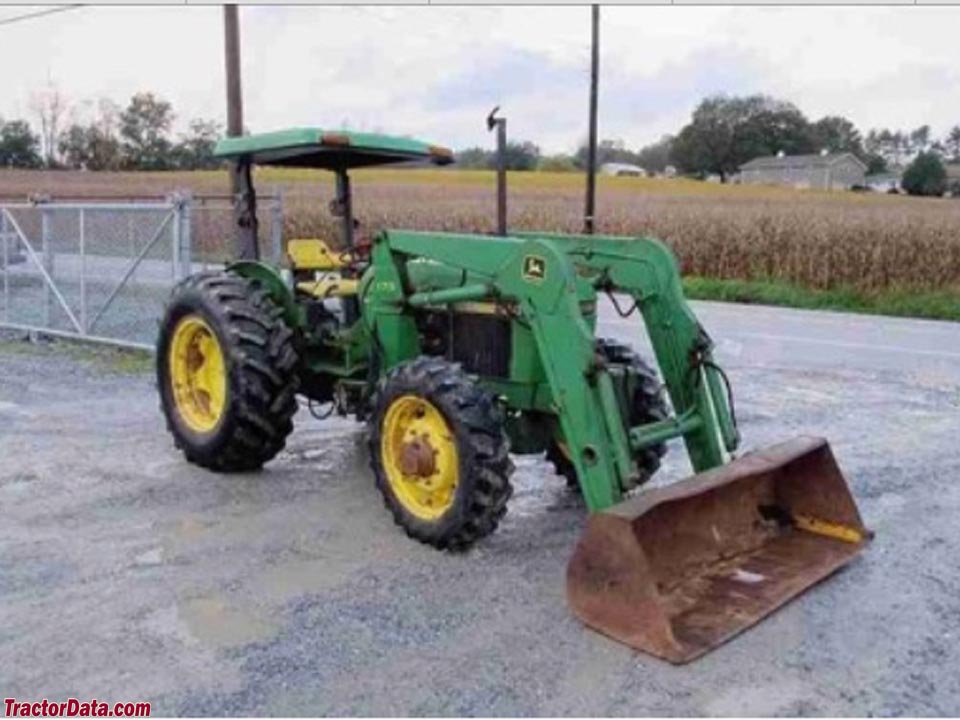

front-end loader | |
Attachment details ...  |
2155 Serial Number Location | |
|---|---|
 | |
Serial number plate on the right side of the tractor frame, above the front axle. |
2155 Serial Numbers | |
|---|---|
1987 | 600000 |
1988 | 624800 |
1989 | 652073 |
1990 | 686146 |
1991 | 717916 |
1992 | 746510 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 55 |
Batteries | 2 |
Battery CCA | 400 |
Battery volts | 12 |
References | |
|---|---|
 | |
Utility Equipment Purchasing Guide published in 1987, by John Deere | |
Utility Equipment Purchasing Guide published in 1988, by John Deere | |
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere | |
Tractors 40 to 85 HP published in 1986, by John Deere | |
Utility Tractors 53 to 64 HP published in 1987, by John Deere | |
Tractors 40 to 95 HP published in 1988, by John Deere | |
40 to 100 HP Tractors Product Information Handbook published in 1987, by John Deere | |
40 to 100 HP Tractors Product Information Handbook published in 1988, by John Deere | |
40 to 100 HP Tractors Product Information Handbook published in 1991, by John Deere | |
The 1991 Long Green Line Agricultural Equipment Review published by John Deere |
