john deere 2550
 | 1983 - 1986
2050 SeriesUtility tractor | 1983 - 1986 | 2050 Series | Utility tractor |
|---|---|---|---|---|
1983 - 1986 | ||||
2050 Series | ||||
Utility tractor | ||||
1983 - 1986 | |
|---|---|
2050 Series | |
Utility tractor |
Transmission options | |
|---|---|
8-speed partially synchronized | |
16-speed partial power shift | |
8-speed power shuttle | |
12-speed partially synchronized |
Transmission | |
|---|---|
Transmission | John Deere Top-Shaft Synchronized |
Type | partially synchronized |
Gears | 8 forward and 4 reverse |
Oil capacity | 52.8 qts
50.0 L |
Four gears in two ranges, plus reverse range. Synchronized shifting between gears. | |
Speeds | |
|---|---|
With 16.9-30 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | John Deere Hi-Lo Top-Shaft Synchronized |
Type | partial power shift |
Gears | 16 forward and 8 reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (I-II) and reverse (R) with two-speed power shift (rabbit/turtle). | |
Speeds | |
|---|---|
 |
Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | John Deere Direction Reverser |
Type | power shuttle |
Gears | 8 forward and 4 reverse |
The Direction Reverser transmission provides clutchless hydraulic shuttle shifting using a left-hand reverser lever. Reverser not available with 4WD or cab. Reverse only operates in low range. | |
Speeds | |
|---|---|
With 16.9-30 rear tires. | |
 |
Transmission | |
|---|---|

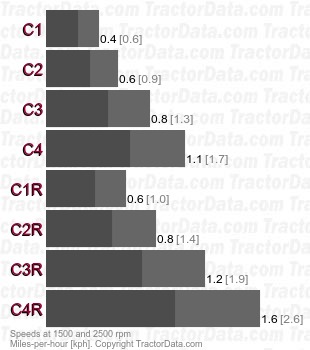

Transmission | John Deere TSS Creeper |
Type | partially synchronized |
Gears | 12 forward and 8 reverse |
Adds a creeper to the low and reverse ranges of the Top-Shaft Synchronized transmission. | |
Speeds | |
|---|---|
With 18.4-34 rear tires. | |
 |
