john deere 430
 | 1958 - 1960
Two-Cylinder 30 SeriesUtility tractor | 1958 - 1960 | Two-Cylinder 30 Series | Utility tractor |
|---|---|---|---|---|
1958 - 1960 | ||||
Two-Cylinder 30 Series | ||||
Utility tractor | ||||
1958 - 1960 | |
|---|---|
Two-Cylinder 30 Series | |
Utility tractor |
Engine options | |
|---|---|
John Deere 1.9L 2-cyl gasoline | |
John Deere 1.9L 2-cyl all-fuel | |
John Deere 1.9L 2-cyl LP gas |
Engine Detail | |
|---|---|
John Deere | |
gasoline | |
2-cylinder 4-valve | |
liquid-cooled | |
Displacement | 113 ci
1.9 L |
Bore/Stroke | 4.25x4.00 inches
108 x 102 mm |
Air cleaner | oil bath |
Rated RPM | 1850 |
Firing order | 1-2 |
Starter volts | 6 |
Coolant capacity | 11 qts
10.4 L |
Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Oil change | 150 h |

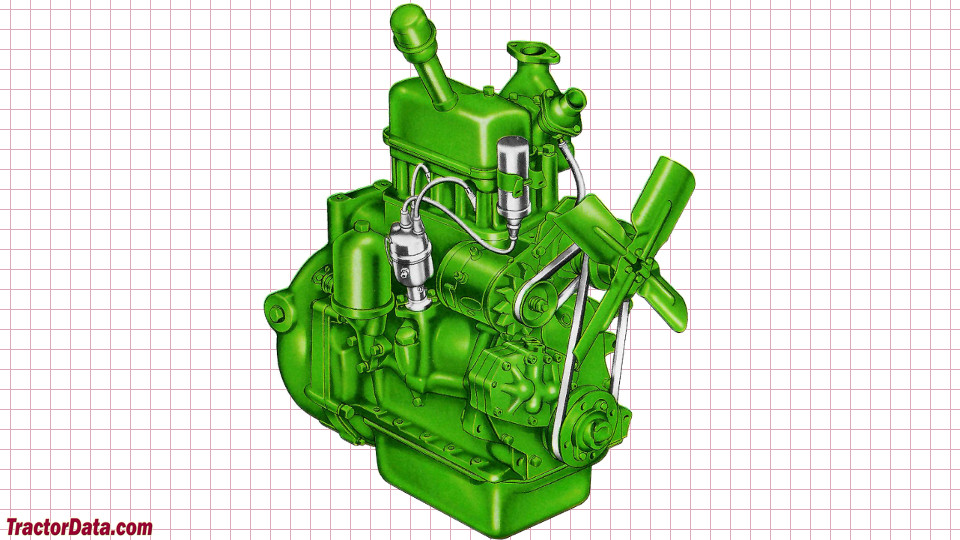

John Deere 430 Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
John Deere | |
all-fuel | |
2-cylinder | |
liquid-cooled | |
Displacement | 113 ci
1.9 L |
Bore/Stroke | 4.25x4.00 inches
108 x 102 mm |
Rated RPM | 1850 |
Firing order | 1-2 |
Engine Detail | |
|---|---|
John Deere | |
LP gas | |
2-cylinder | |
liquid-cooled | |
Displacement | 113 ci
1.9 L |
Bore/Stroke | 4.25x4.00 inches
108 x 102 mm |
Rated RPM | 1850 |
Firing order | 1-2 |
