john deere 4650
 | 1983 - 1988
50 SeriesRow-Crop tractor | 1983 - 1988 | 50 Series | Row-Crop tractor |
|---|---|---|---|---|
1983 - 1988 | ||||
50 Series | ||||
Row-Crop tractor | ||||
1983 - 1988 | |
|---|---|
50 Series | |
Row-Crop tractor |
Transmission options | |
|---|---|
16-speed partial power shift | |
15-speed full power shift |
Transmission | |
|---|---|
Transmission | John Deere Quad-Range |
Type | partial power shift |
Gears | 16 forward and 6 reverse |
Clutch | Perma-Clutch wet disc |
Oil capacity | 107.6 qts
101.8 L |
Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range. | |
Speeds | |
|---|---|
20.8-38 rear tires. | |
 |

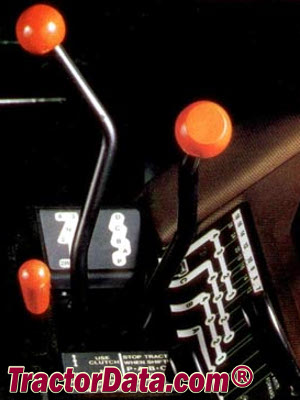

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | John Deere Power Shift |
Type | full power shift |
Gears | 15 forward and 4 reverse |
Clutch | Perma-Clutch wet disc |
Oil capacity | 74.4 qts (2WD)
70.4 L |
| 86.4 qts (4WD)
81.8 L |
Optional transmission. Full (clutchless) power shift can be made between gears, forward and reverse. | |
Speeds | |
|---|---|
20.8-38 rear tires. | |
 |

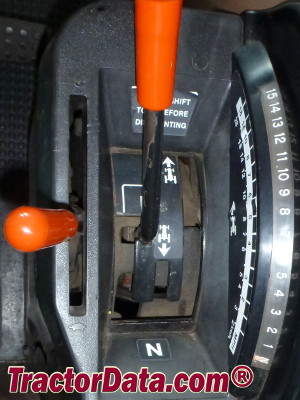

Shift Pattern | |
|---|---|
 |
