john deere 4850
 | 1983 - 1988
50 SeriesRow-Crop tractor | 1983 - 1988 | 50 Series | Row-Crop tractor |
|---|---|---|---|---|
1983 - 1988 | ||||
50 Series | ||||
Row-Crop tractor | ||||
1983 - 1988 | |
|---|---|
50 Series | |
Row-Crop tractor |
Engine Detail | |
|---|---|
John Deere | |
intercooled turbocharged diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 466 ci
7.6 L |
Bore/Stroke | 4.56x4.75 inches
116 x 121 mm |
Power | 207.9 hp
155.0 kW |
Air cleaner | dry |
Compression | 15:1 |
Rated RPM | 2200 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Oil capacity | 21 qts
19.9 L |
Coolant capacity | 32 qts
30.3 L |

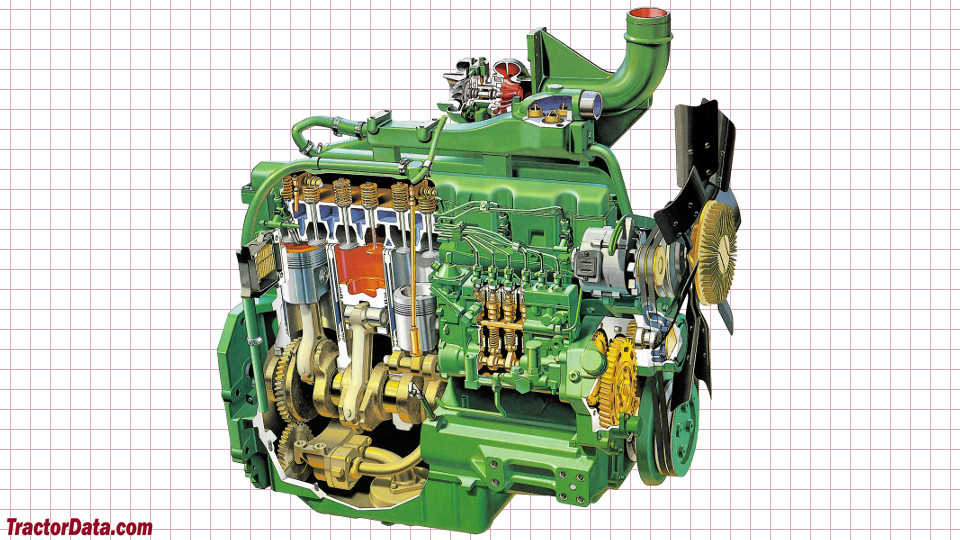

John Deere 4850 Engine | |
|---|---|
 |
