john deere 5101e
 | 2008 - 2012
Model year 2008-20112012-2012
5E Limited SeriesUtility tractor | 2008 - 2012 | Model year 2008-20112012-2012 | 5E Limited Series | Utility tractor |
|---|---|---|---|---|---|
2008 - 2012 | |||||
Model year 2008-20112012-2012 | |||||
5E Limited Series | |||||
Utility tractor | |||||
2008 - 2012 | |
|---|---|
Model year 2008-20112012-2012 | |
5E Limited Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Augusta, Georgia, USA | |
Original price | $48,135 (2011) |
Variants | |
|---|---|
5101E | utility chassis |
5101EN | narrow chassis |
John Deere 5101E Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Engine details ...  |
John Deere 5101E Transmission | |
|---|---|
12-speed partially synchronized | |
Transmission details ...  |
John Deere 5101E Power | |
|---|---|
Engine (gross) | 101 hp
75.3 kW |
PTO (claimed) | 82 hp
61.1 kW |
PTO (tested) | 83.78 hp
62.5 kW |

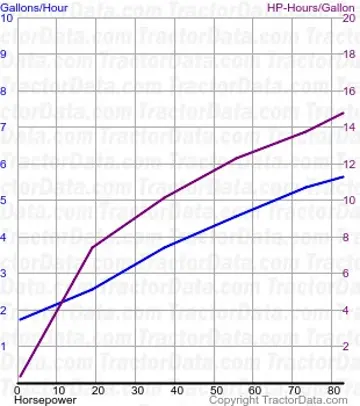

Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Differential lock | rear standard |
Steering | hydrostatic power |
Independent hydraulic wet disc brakes | |
Cab standard with heat and air-conditioning. | |
Photos | |
|---|---|
 | |
John Deere 5101E photos...  |
Capacity | |
|---|---|
Fuel | 33.5 gal
126.8 L |
Front hubs | 0.74 qts
0.7 L |
Front diff. | 4.8 qts
4.5 L |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2828 psi
195.0 bar |
Rear valves | 1 to 3 |
Mid valves | 2 (optional) |
Pump flow | 15.9 gpm
60.2 lpm |
Total flow | 22.5 gpm
85.2 lpm |
Steering flow | 6.6 gpm
25.0 lpm |
Steering press. | 1900 psi
131.0 bar |
Tractor hitch | |
|---|---|
Rear Type | 2/1 |
Control | position control and top-link draft sensing |
Rear lift (at 24"/610mm) | 3,213 lbs
1457 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | mechanical |
Rear PTO Type | 540/540E |
| 540/1000 (optional) |
Dimensions & Tires | |
|---|---|
Wheelbase | 85.8 inches
217 cm |
Weight | 7,320 lbs
3320 kg |
Front tire | 12.4-24 |
Rear tire | 18.4-30 |
Full dimensions and tires ...  | |
John Deere 5101E attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
5101E Serial Numbers | |
|---|---|
Location: | Left side of tractor above front axle. |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 90 |
| 120 (optional) |
Battery CCA | 950 |
Battery volts | 12 |
References | |
|---|---|
 | |
New 5 Series Utility Tractors published in 2009, by John Deere | |
5 Series published in 2009, by John Deere |
