john deere 5203
 | 2003 - 2008
5003 SeriesUtility tractor | 2003 - 2008 | 5003 Series | Utility tractor |
|---|---|---|---|---|
2003 - 2008 | ||||
5003 Series | ||||
Utility tractor | ||||
2003 - 2008 | |
|---|---|
5003 Series | |
Utility tractor |
Transmission options | |
|---|---|
9-speed | |
9-speed partially synchronized |
Transmission | |
|---|---|
Transmission | SyncReverser |
Gears | 9 forward and 3 reverse |
Clutch | dry disc |
Oil capacity | 40 qts
37.9 L |
Three speeds (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, before shifting speed or range. Standard on 2WD models. | |

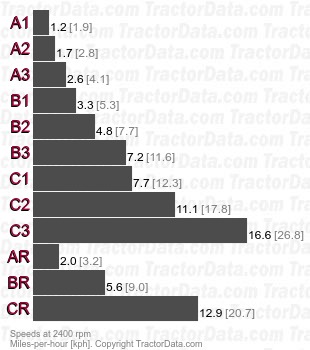

Speeds | |
|---|---|
With 14.9x28 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | SyncShuttle |
Type | partially synchronized |
Gears | 9 forward and 3 reverse |
Clutch | dry disc |
Oil capacity | 40 qts
37.9 L |
The SyncShuttle (also identified as Top Shaft Synchronizer or TSS) is available on the 4WD models. Three speeds (1-3) plus reverse (R) in three ranges (A-C). Shifting speeds may be done while in motion, using the clutch. The tractor must be stopped to shift ranges. | |
Speeds | |
|---|---|
With 14.9x28 rear tires. | |
 |
